Toro

Toro 60" (74055TA) Z Master 4000 Series MyRIDE® HDX

Toro 60" (74055TA) Z Master 4000 Series MyRIDE® HDX

Regular price $22,399.00
Regular price $24,999.00 Sale price $22,399.00
Sale Sold out

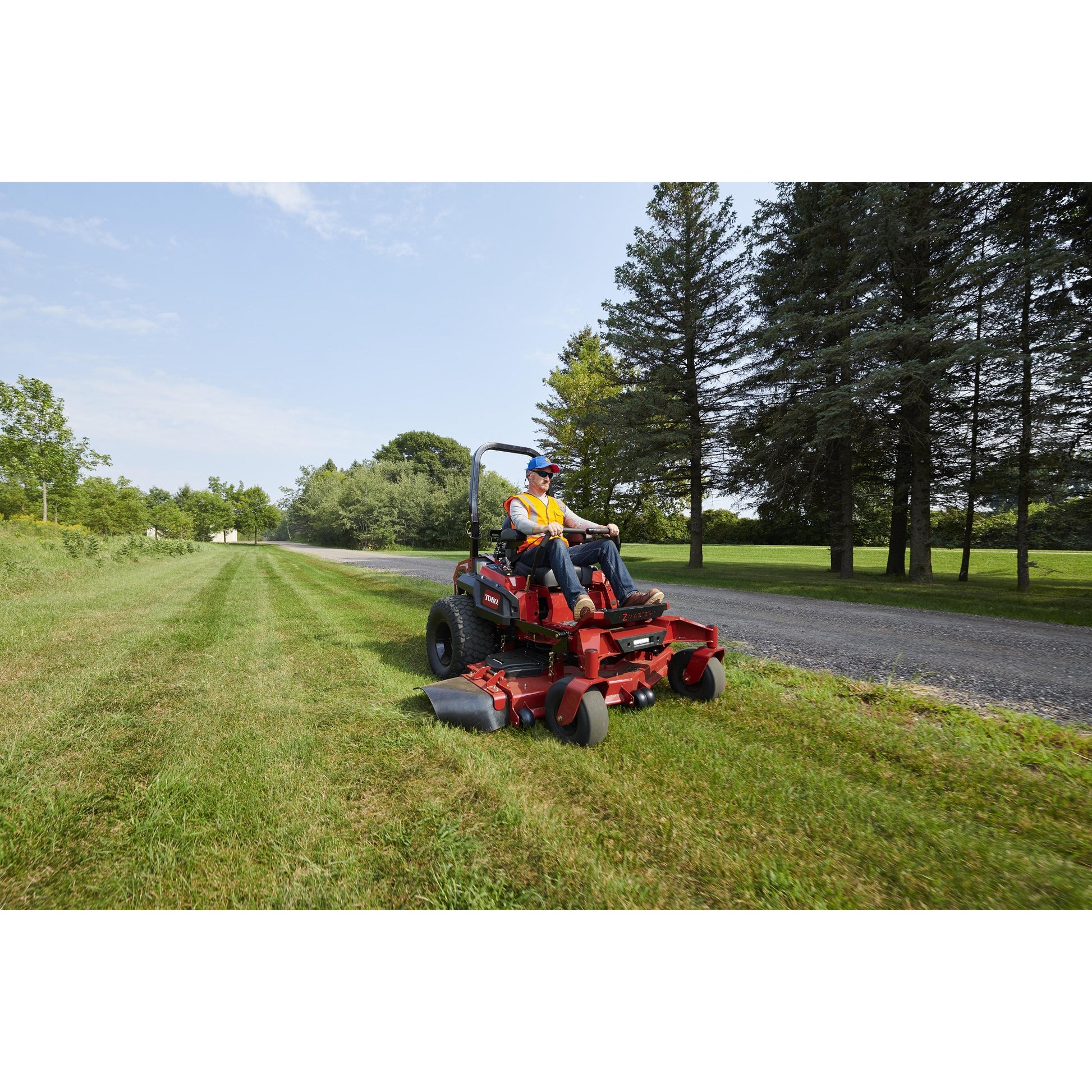

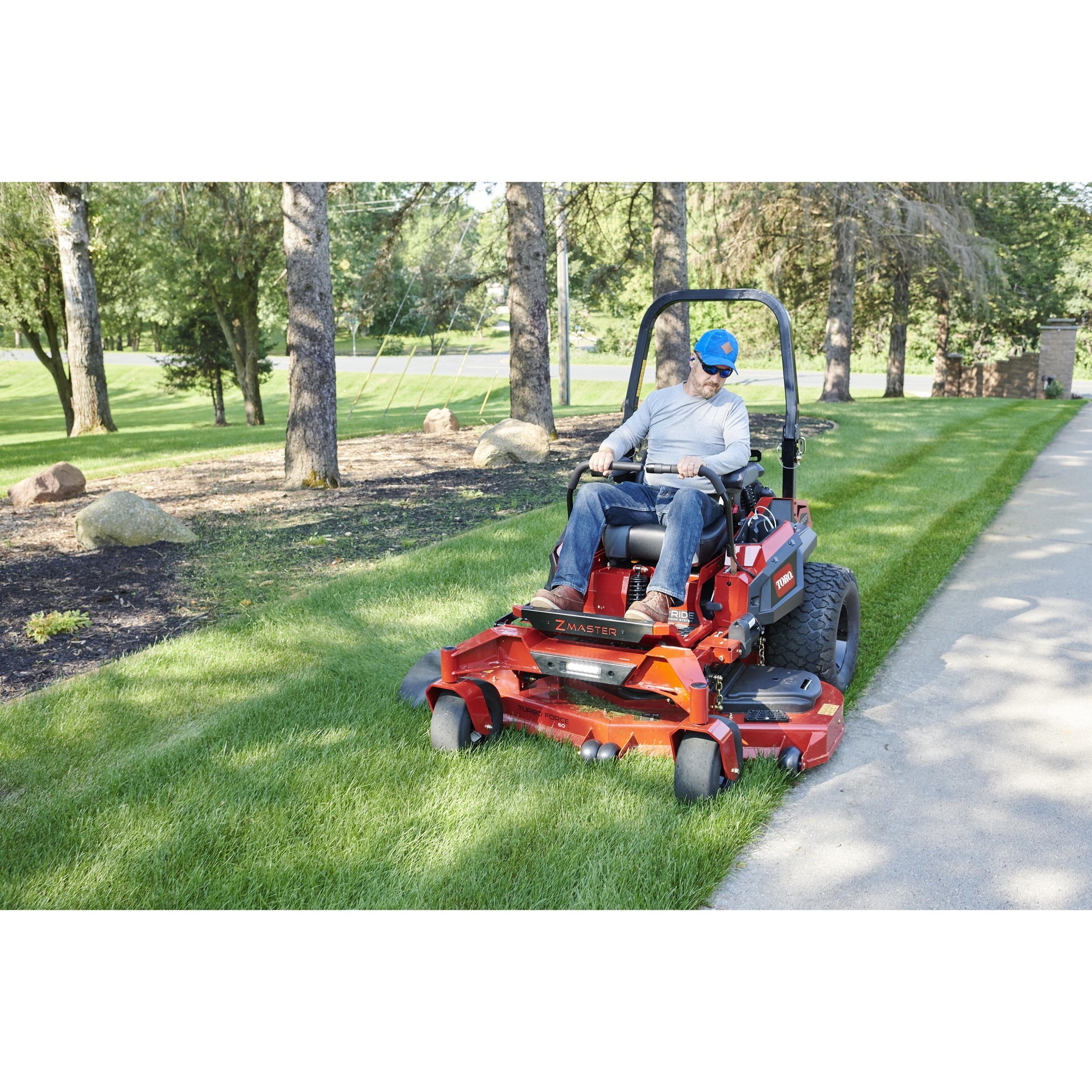

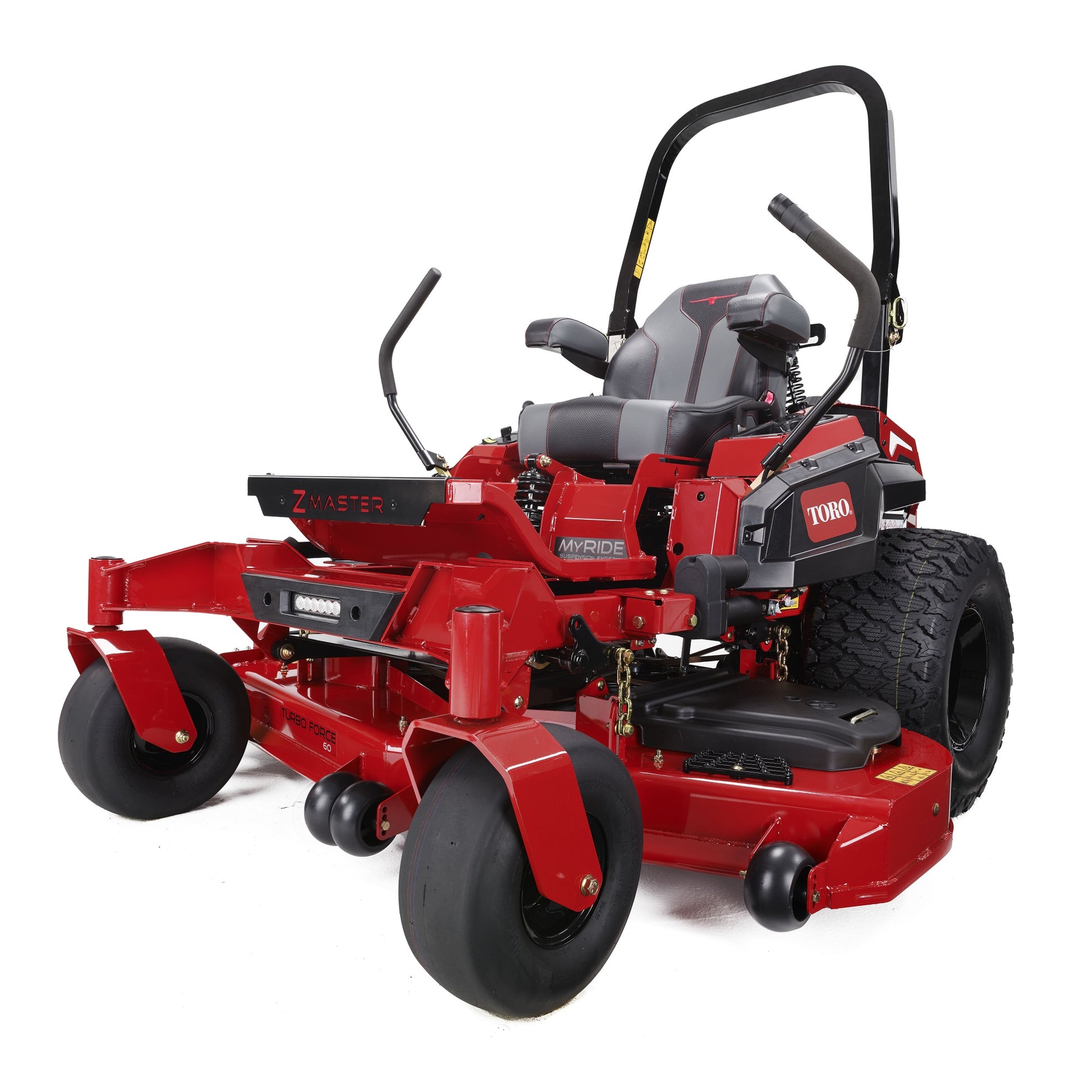

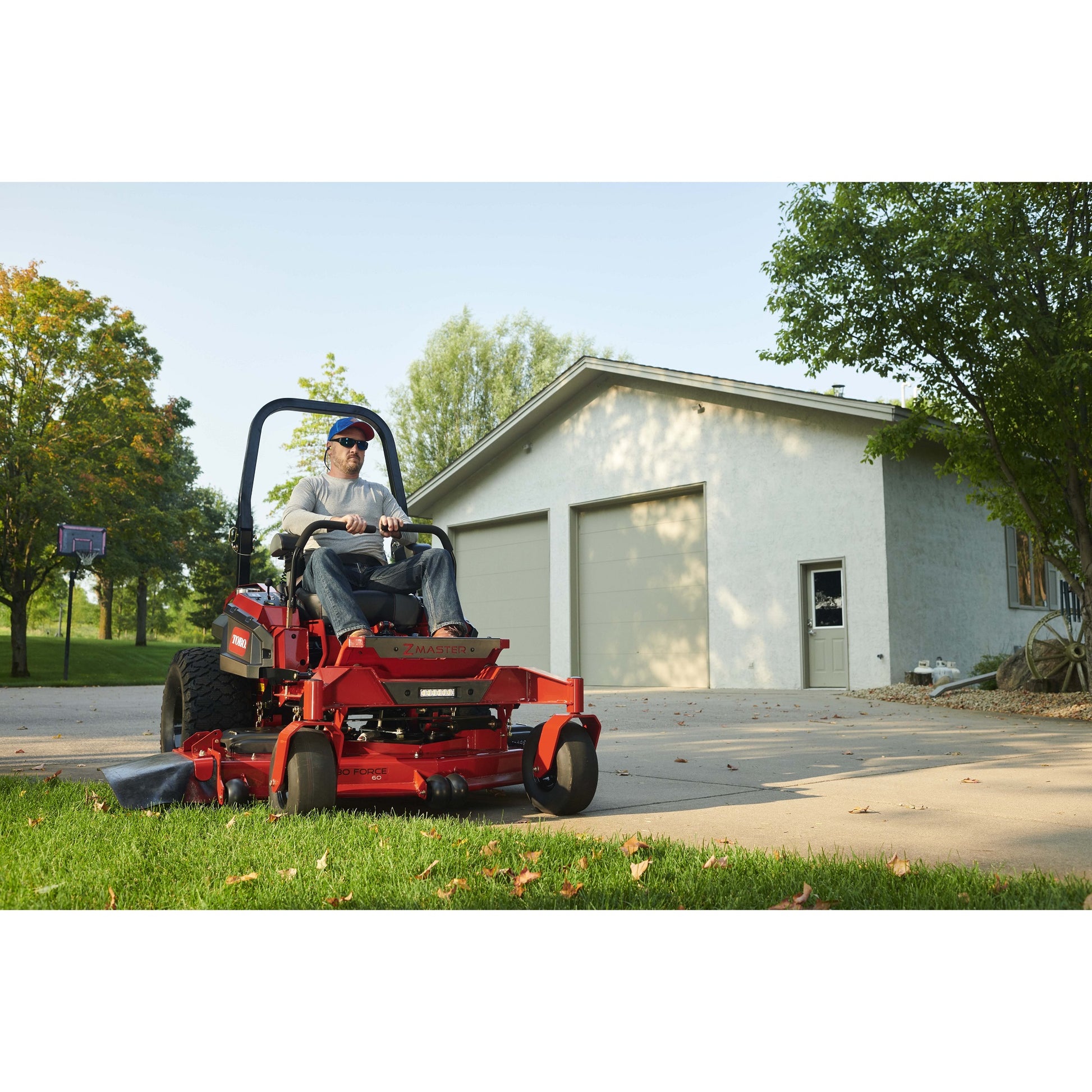

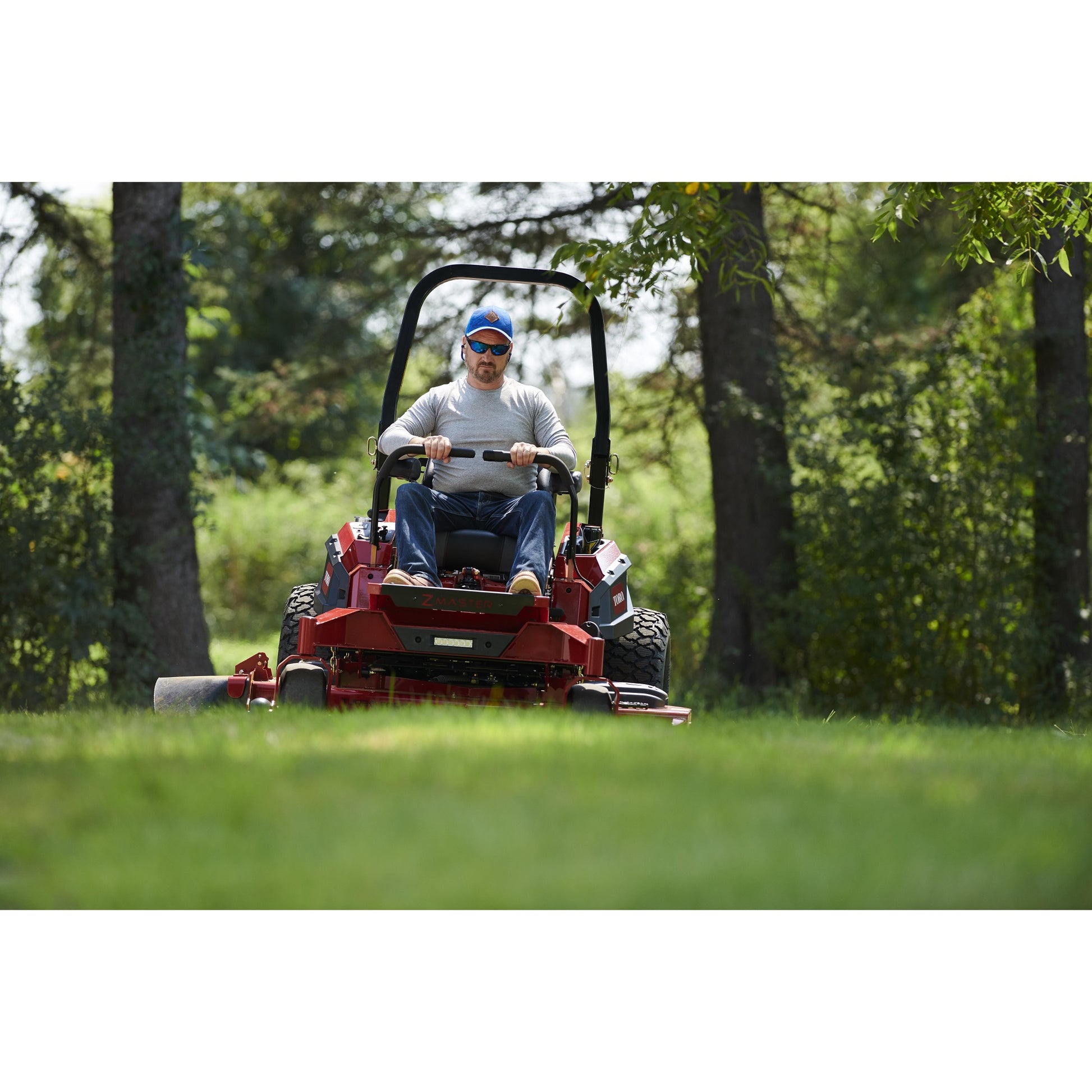

Kick productivity and comfort up a notch with the Z-Master 4000 HDX with MyRIDE® Suspension System. Power through your day with a powerful 31 hp* Kawasaki FX921V engine, heavy-duty commercial grade hydros, 66 cm (26”) Voodoo Trac™ Tyres, and a 152 cm (60”) 7-Gauge High-Strength Steel TURBO FORCE® cutting deck. Ride in comfort with the customisable MyRIDE® Suspension System featuring up to 7.6 cm of platform travel to save your body from tough terrain.  Easy on and off with a step-through front end, deck step plate, and anti-slip floormat. With the deluxe suspension seat, an hour meter, USB ports, phone holder, cup holder, and for after-hours work, powerful illumination with LED headlights, you’ll have everything you need to help you power through long days.

MyRIDE® Suspension System - Save your body from the toughest terrain with the MyRIDE® Suspension System.

✔ Electronic Deck Lift Assist - Electronic deck lift assist in dialing in your desired cut height.

✔ 66 cm (26") Voodoo Trac™ Drive Tyres - Get the ultimate in agressive tread and styling and survey the task from a higher-vantage-point with 66 cm Voodoo Trac™ Drive Tyres.

✔ Up to 19.3 km/h - Get more done with ground speeds up to 19.3 km/h without reducing cut quality.

✔ Rubber Discharge Chute - Trim close without damaging landscape structures or your chute.
Deck Step Plate - Keep your grip and remove excess mud from your shoes with a deck step plate.

✔ Clear Sightline to Rear Tyres - Clear sightline to rear tyres for enhanced contro so you can clear a path without tyre spin.

✔ Dual Capture Anti-Scalp Rollers - Intelligently engineered dual capture anti-scalp rollers ensure the highest quality of cut in the harshest terrain you can throw at it.

✔ Tool-less Air Filter - Spend less time maintaining your mower with toolless air filter.

✔ Phone and Cup Holder - Keep your phone and drink at arm's reach.

✔ USB Ports - USB ports to help you stay charged on the job.

Engine

31 hp* Kawasaki FX921V (999cc) with Heavy-Duty Donaldson® Canister-Style Air Cleaner

Fuel Capacity

37.9 litre

Blade Tip Speed

18,500+ ft/min

Blade Type

.5 cm (.204") Heat-Treated Steel

Caster Tyres

38 x 16.5 – 15.2 cm (15" x 6.5" - 6") Pneumatic

Clutch

Electromagnetic

Deck Design

152.4 cm (60") 7-Gauge High-Strength Steel TURBO FORCE®

Discharge Chute

Rubber

Drive Tyres

Voodoo Trac ™ 66 x 26.7 – 30.5 cm (26” x 10.5” – 12”)

Engine Displacement

999cc

Foot Operated Height of Cut

Standard, 3.8 – 12.7 cm (.6 cm increments), 1.5" - 5.5" (.25" increments)

Ground Speed

Up to 19.3 km/h

Horsepower

31 hp*

Lighting

LED Lights Standard

ROPS

Folding

Comfort Platform

MyRIDE® Suspension System

Platform Travel

7.62 cm (3.0")

Shocks

1 center / 2 rear

Seat

Deluxe Suspension

Adjustability

MyRIDE® Suspension System Adjustability

Spindle Bearings

Maintenance-Free

Spindle Housing

22.9 cm (9") Diameter Aluminium

Steering Controls

3.6 cm (1.4") Diameter Grips; Adjustable, Dampened

Transmission

ZT-4400 Integrated Pumps & Wheel Motors

Warranty

5 years/1250 hours limited warranty

Disclaimer

*The gross horsepower of these engines was laboratory rated at 3,600 RPM by the engine manufacturer in accordance with SAE J1940 and SAE J1995. As configured to meet safety, emission and operating requirements, the actual engine horsepower on this mower may be significantly different.
**See your retailer for warranty details.
