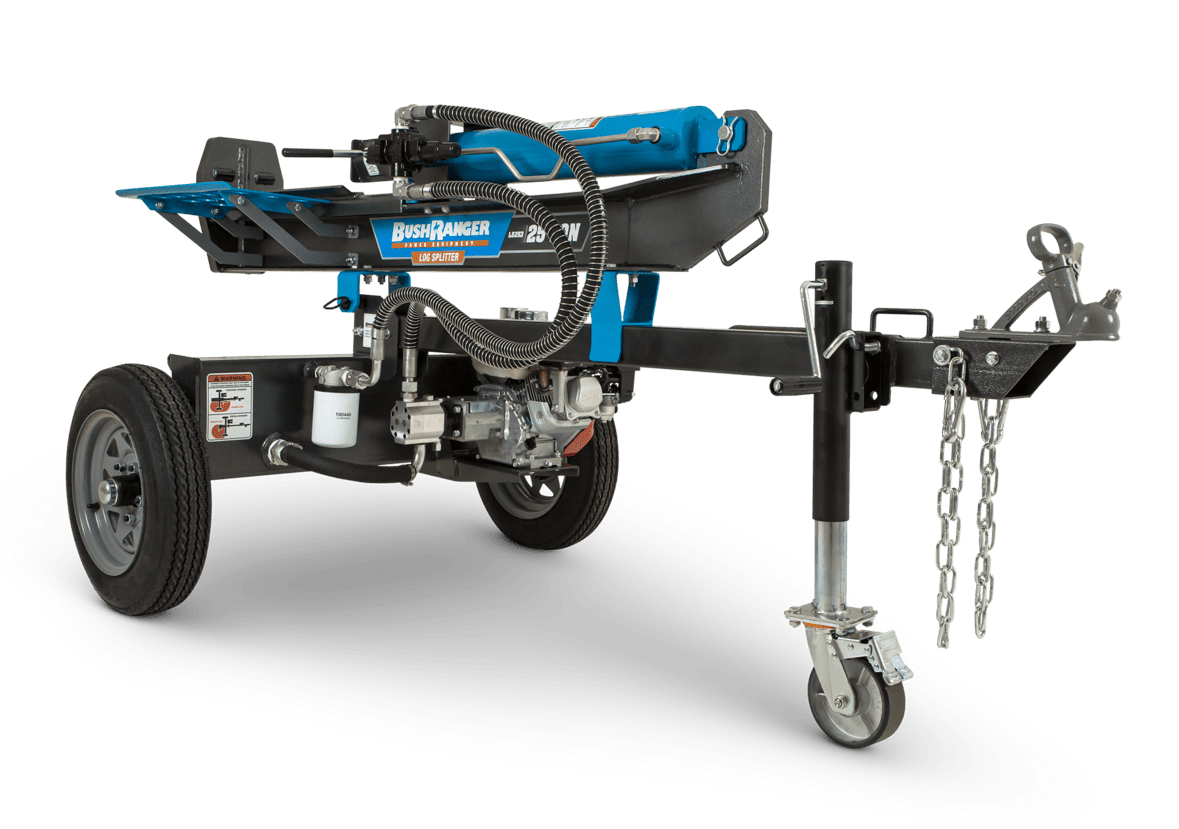

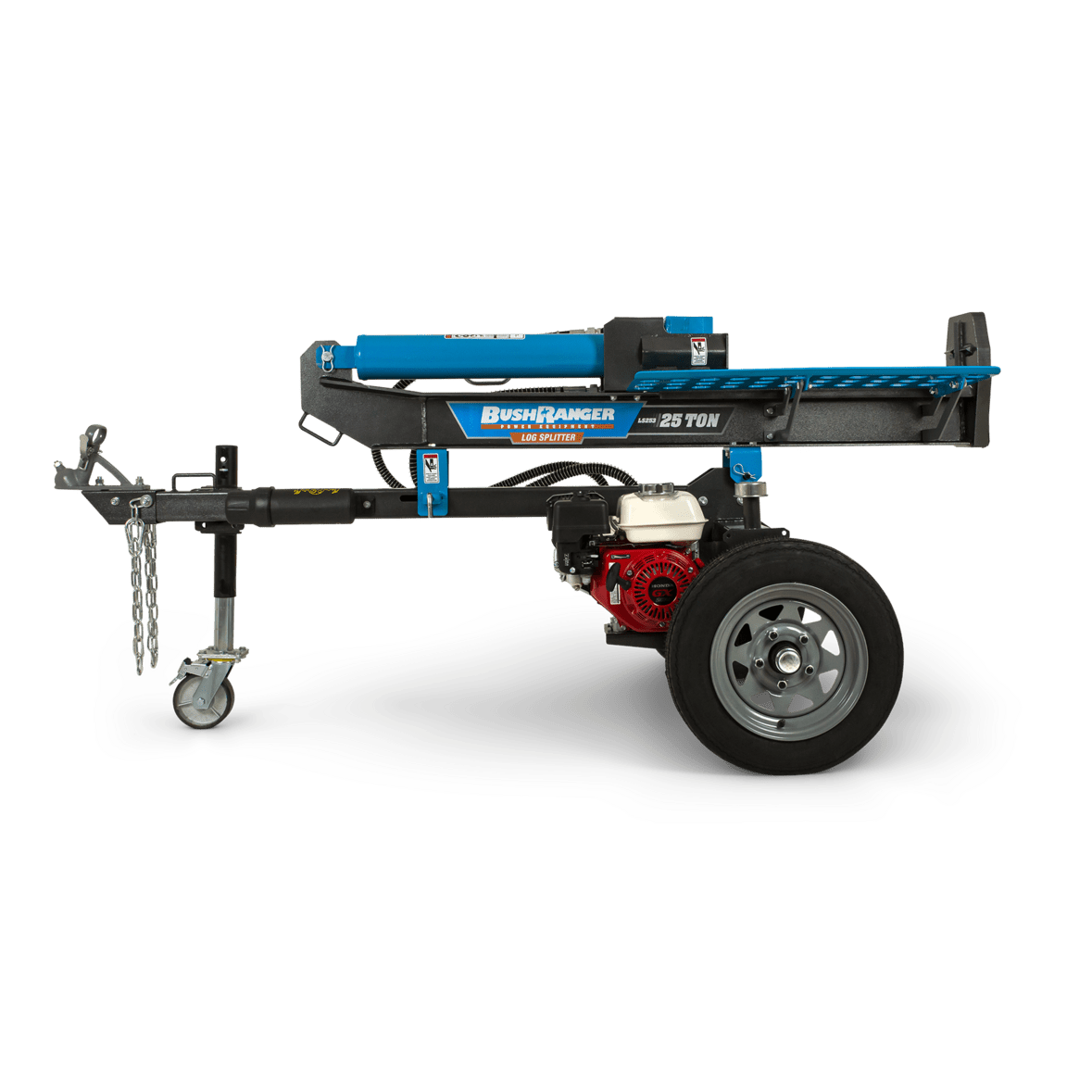

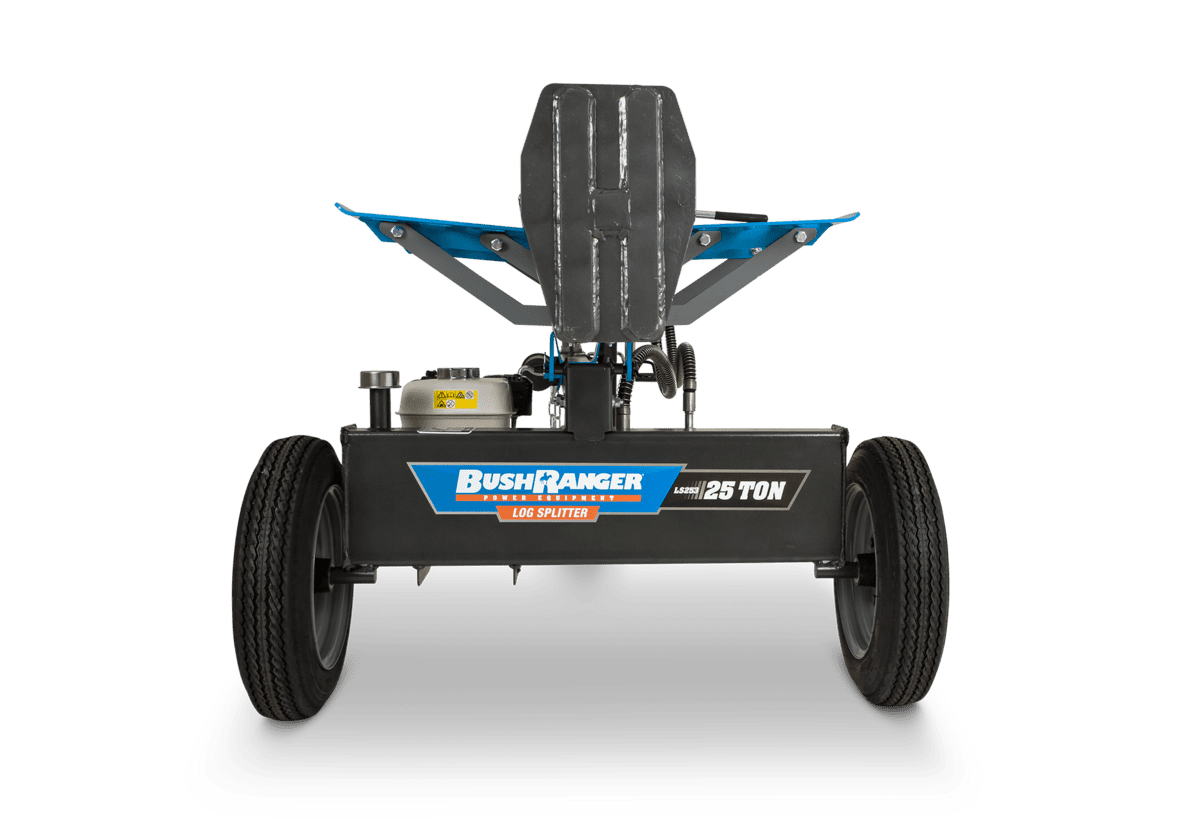

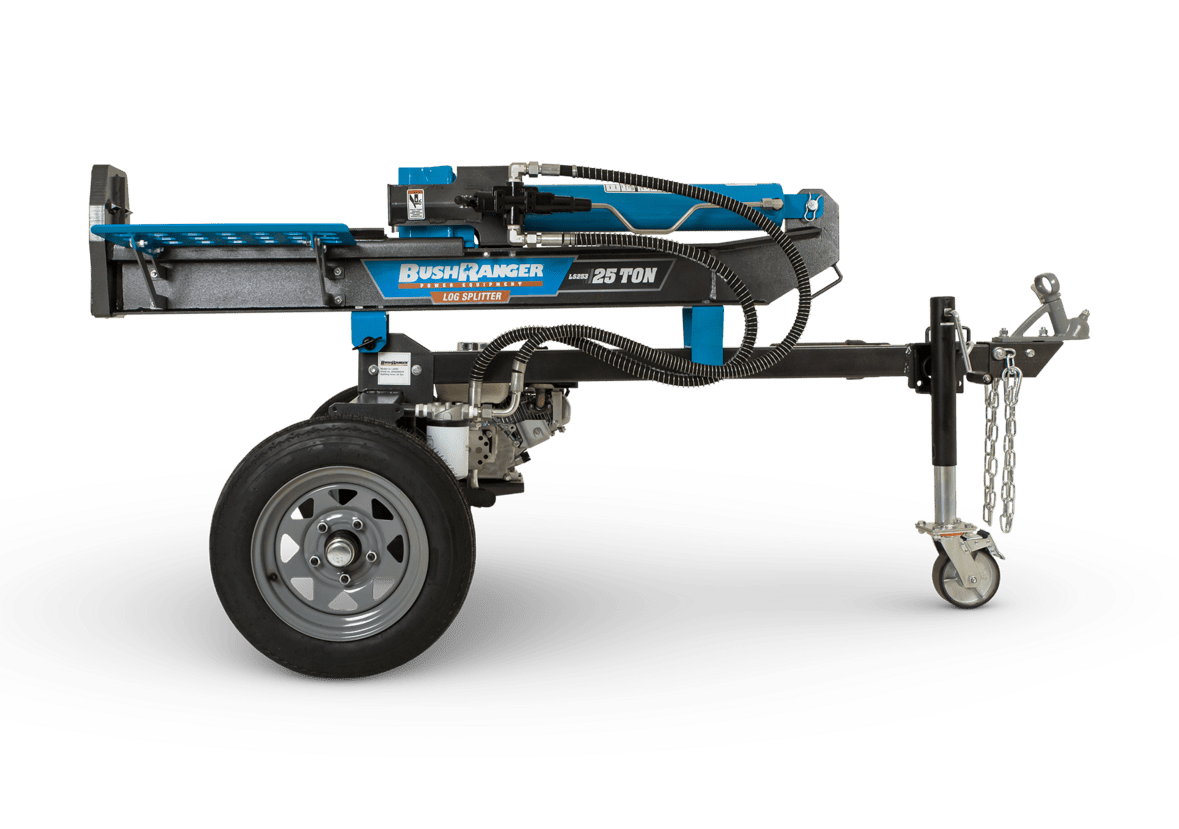

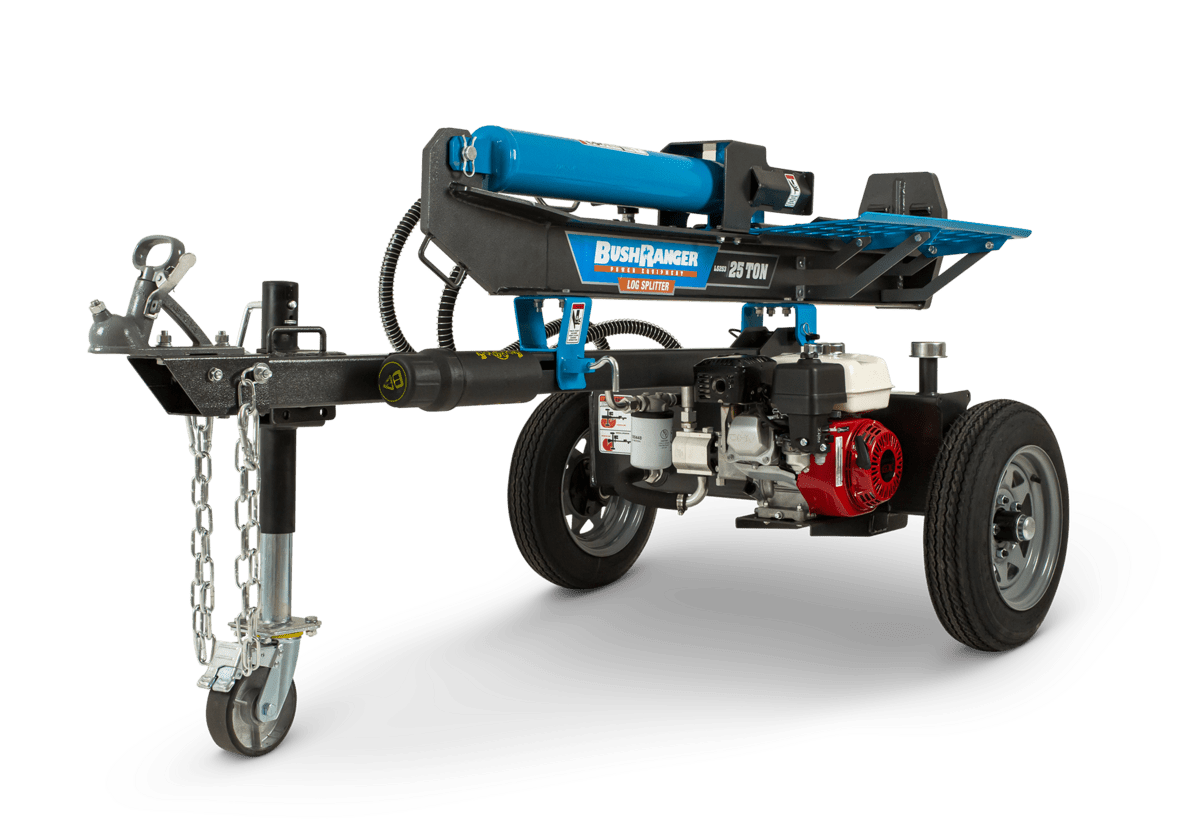

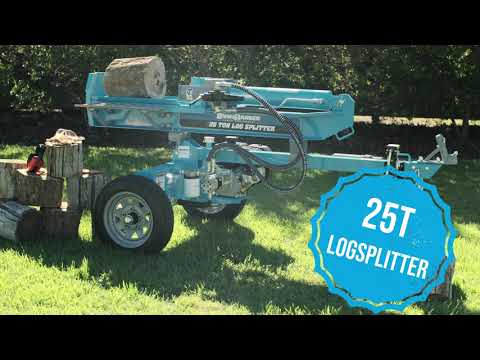

Bushranger LS253 25 Ton (Honda) Log Splitter

Bushranger LS253 25 Ton (Honda) Log Splitter

$2,750.00
$3,399.00 $2,750.00
Sale Sold out

Let the LS253 do all the hard work for you whilst tackling any timber task. Save your back and time with this reliable unit.

The Bushranger 25-Ton log splitter provides quality and power at an affordable price. Fitted with a premium HONDA GX200 engine, a manually activated auto return valve with an 10.9 second cycle time and quality features throughout this log splitter will provide many years of reliable service.

Features:
✔ Quality Engine - HONDA GX200 Engine

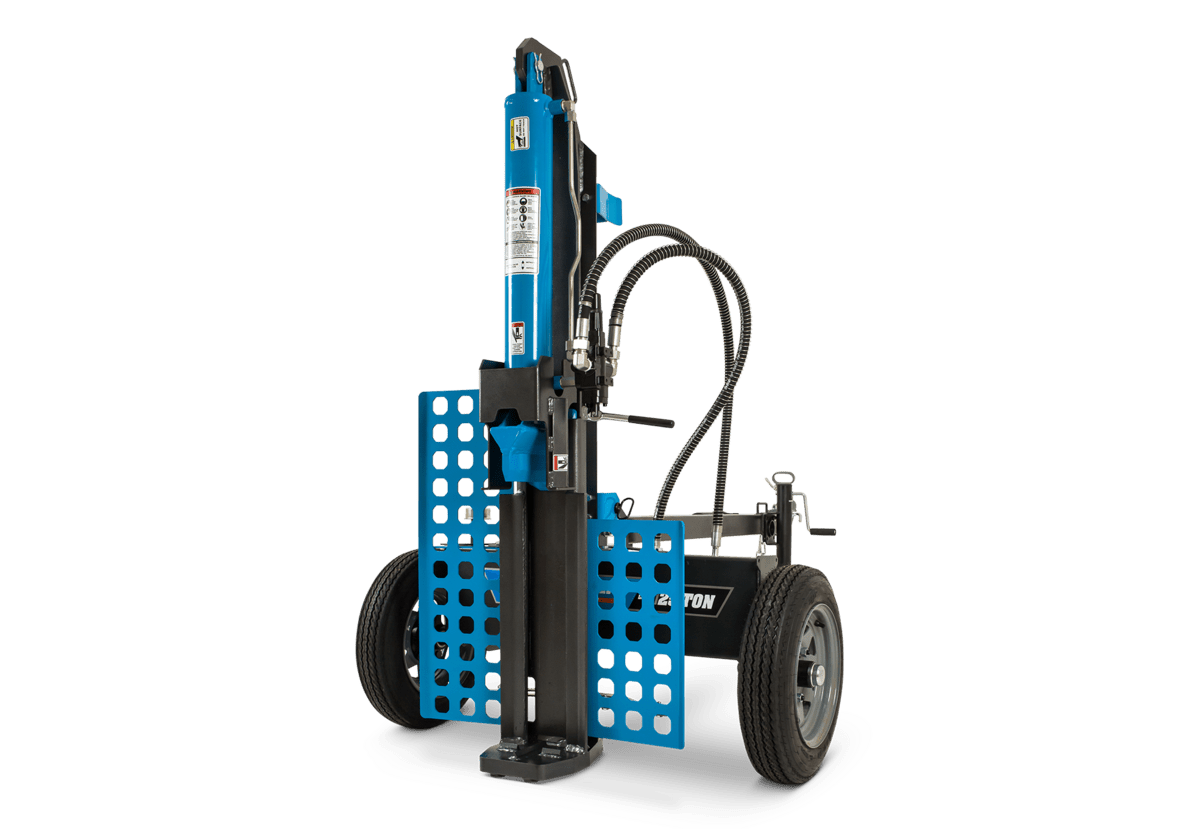

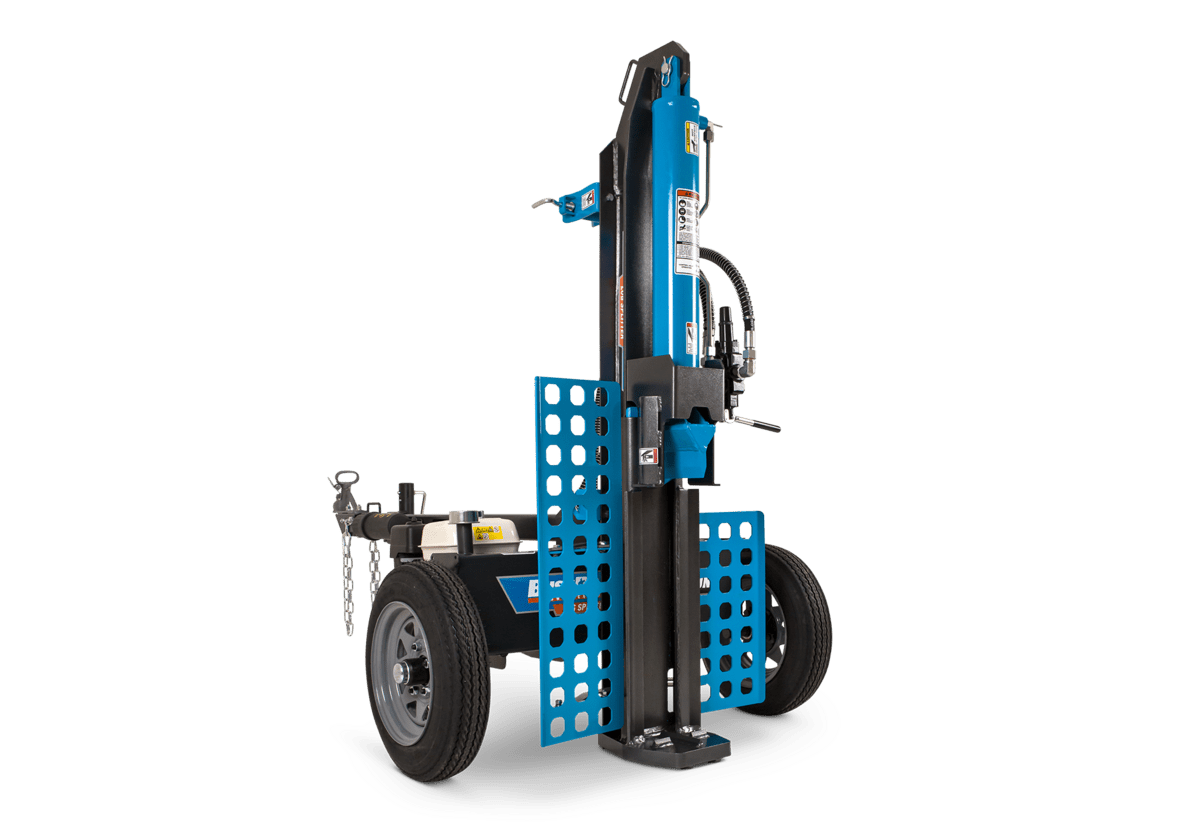

✔ Horizontal or vertical operation.
✔ 25 Tons of splitting force.
✔ Manually activated auto return valve.
✔ Two stage pump 13 GPM (49.21 litres per minute).
✔ Valve - Ergonomically positioned for operator comfort.
✔ Wedge: 8.5 " (215.9 mm) High angled heat treated steel.
✔ Wheels / Tyres*: 4.80" x 12" D.O.T certified.
✔ Beam: 8.5" (215.9 mm) Foot plate.

Warranty Information

Domestic Warranty
3 Years Domestic (Limited) Warranty
Commercial Warranty
3 Month Commercial Warranty
Hire/Rental Warranty
3 Month Hire/Rental Warranty

Miscellaneous

Wedge: (mm)
215.9 mm High angled heat treated steel
Capacity
25 Tons of splitting force
Valve
Manually activated auto return valve with adjustable detent
Wheels / Tyres
*D.O.T approved 12" x 4.80" multi lug trailer wheel

Dimension Specs

Shipping Dimensions: (mm)
635 mm (25")
Shipping Weight: (kg)
231.33 kgs (with fluids)

Engine and Fuel Specs

Engine
Honda GX200 4 stroke
Engine Type
OHV engine w/oil alert system fitted
Engine (cc)
196 cc
HP
6.5 hp

Log Splitter Specs

Hydraulic Ram Cylinder: (mm)
Outside: 114.3 mm dia x 609.6 mm stroke / Inside: 101.6 mm I.D x 622.3 Stroke
Hydraulic Tank Capacity: (L)
25.5 litres
Pump: (L)
Two stage 49.21 litres per minute

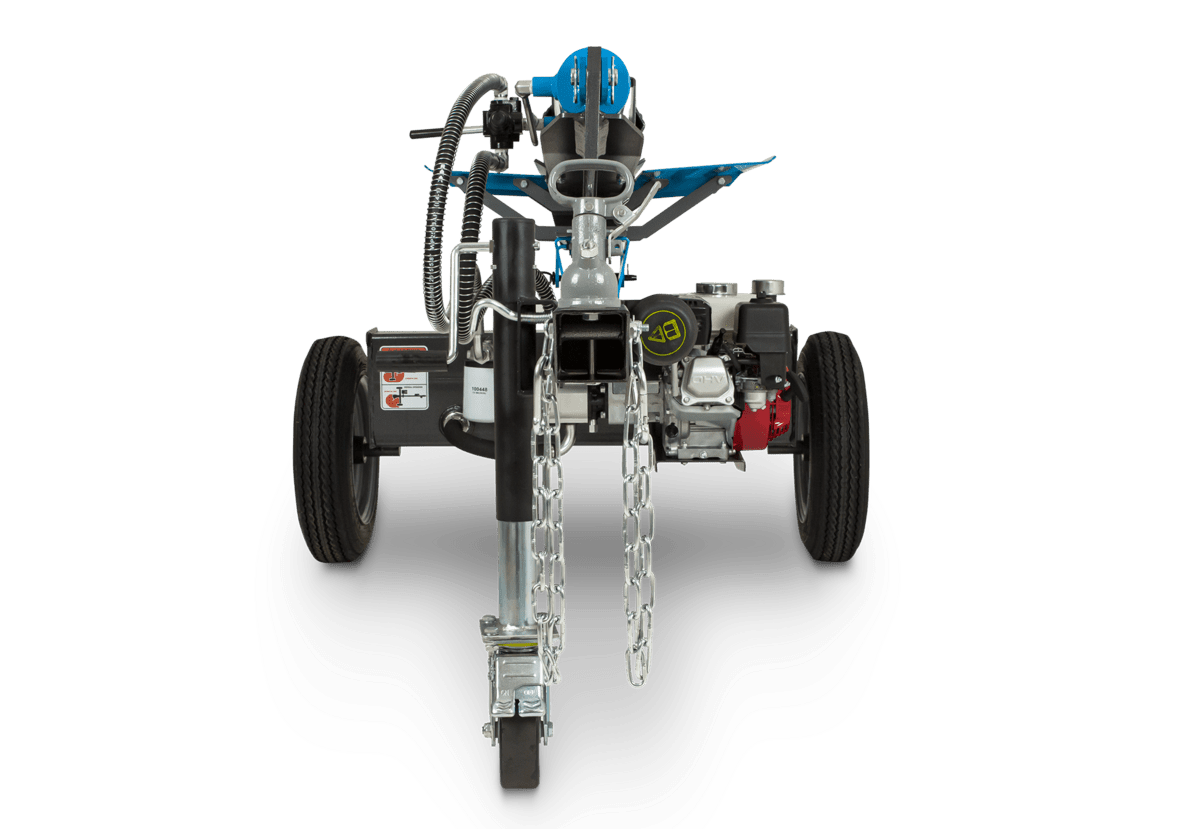

Tow Hitch: (mm)
50 mm ball hitch with safety chains - Aust style trailer bail hitch
Cycle Time
10.9 seconds (down and back)
Beam (mm)
215.9 mm
Ram Size
1.75" (44.45 mm) Dia.
