Bushranger

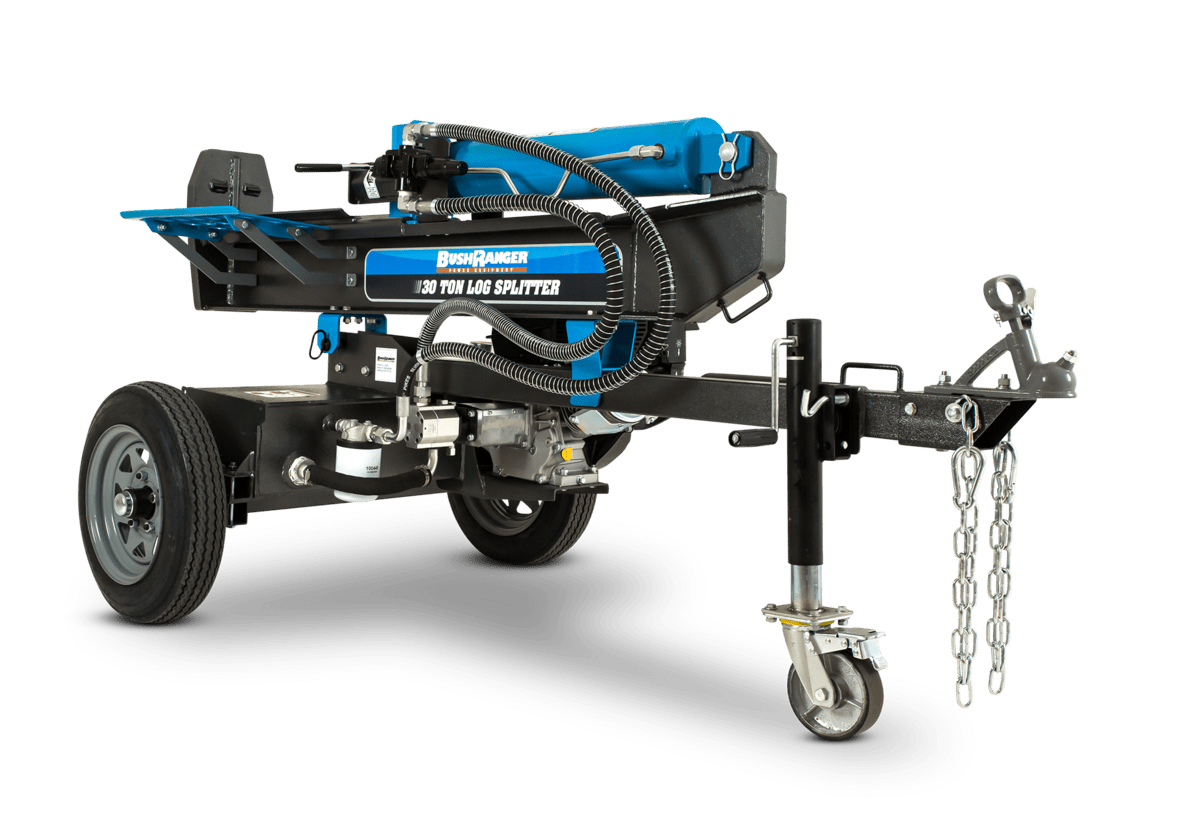

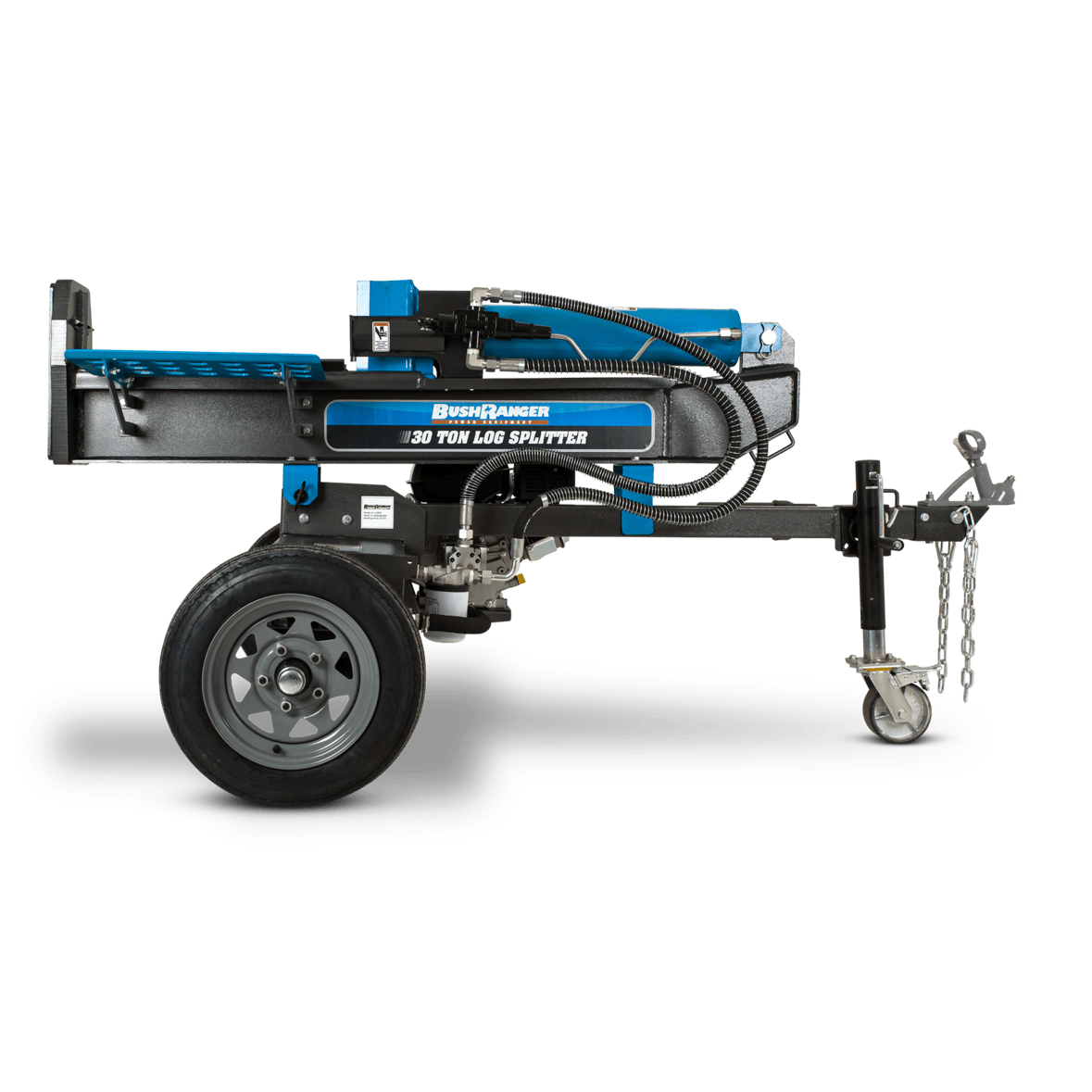

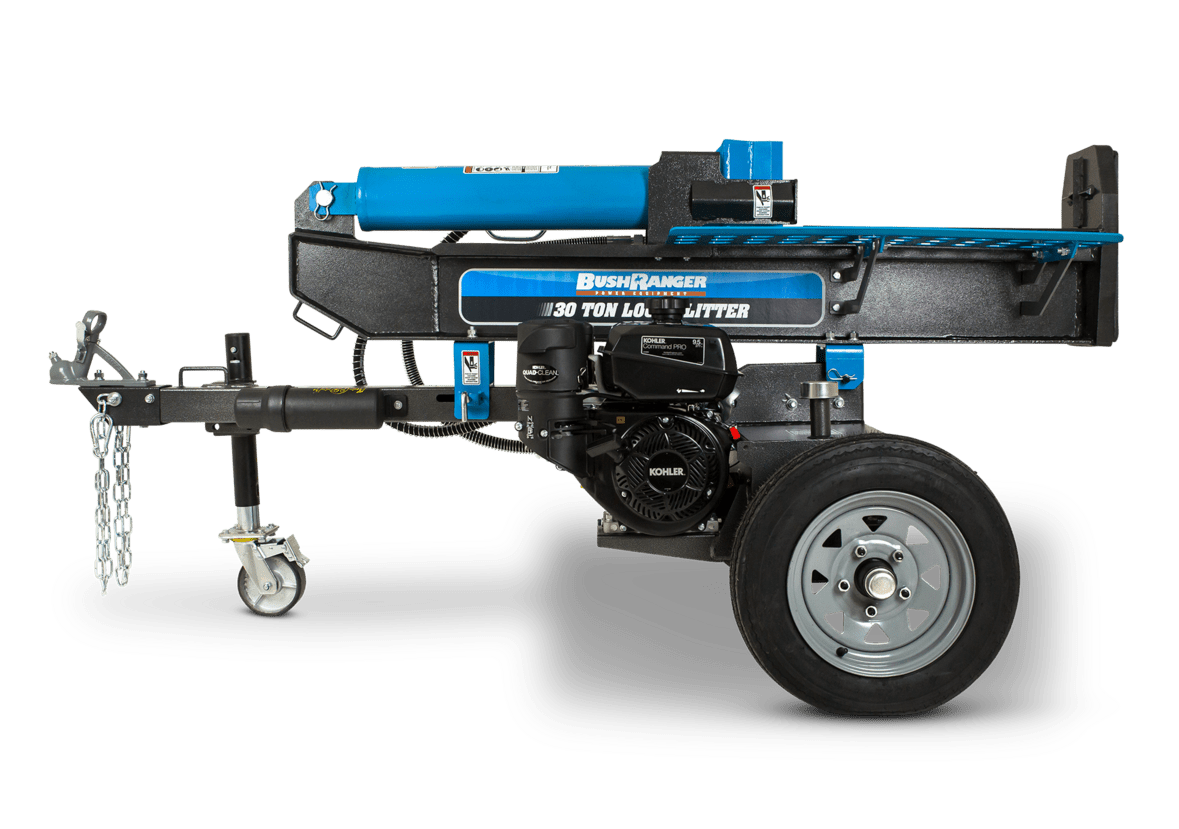

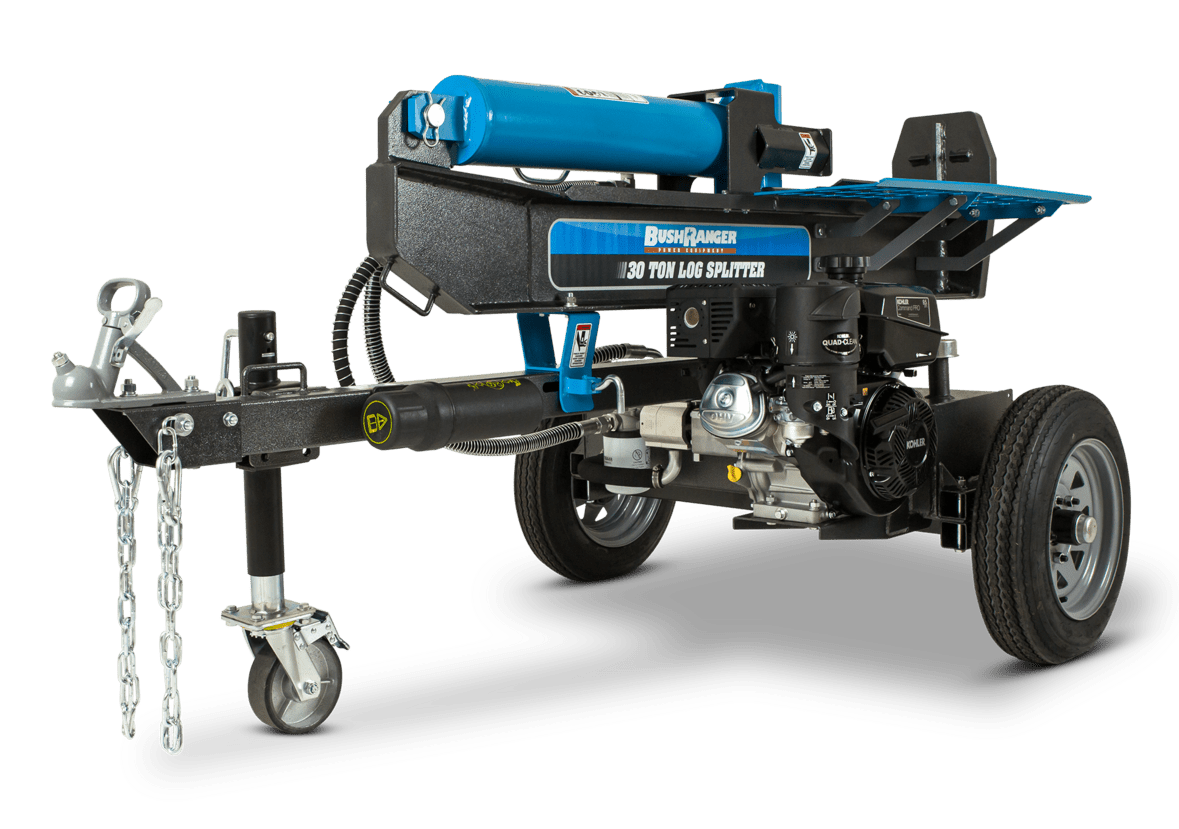

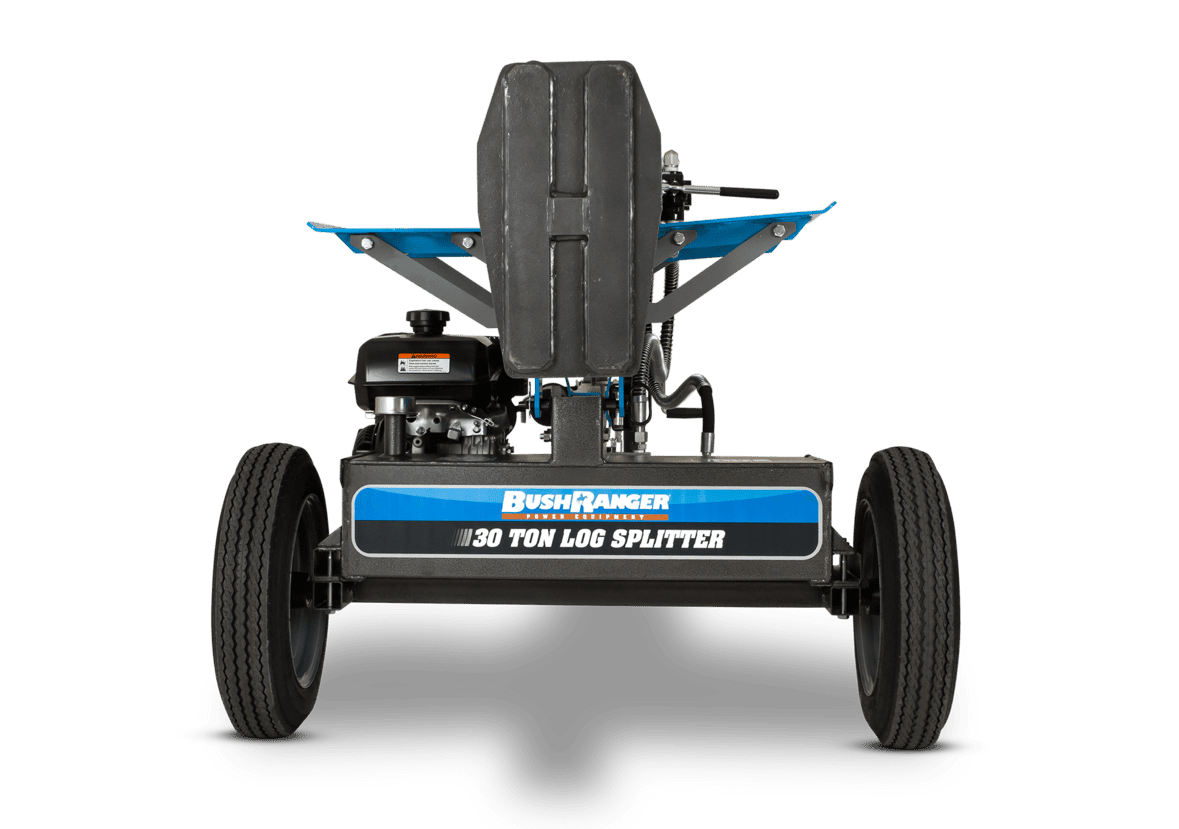

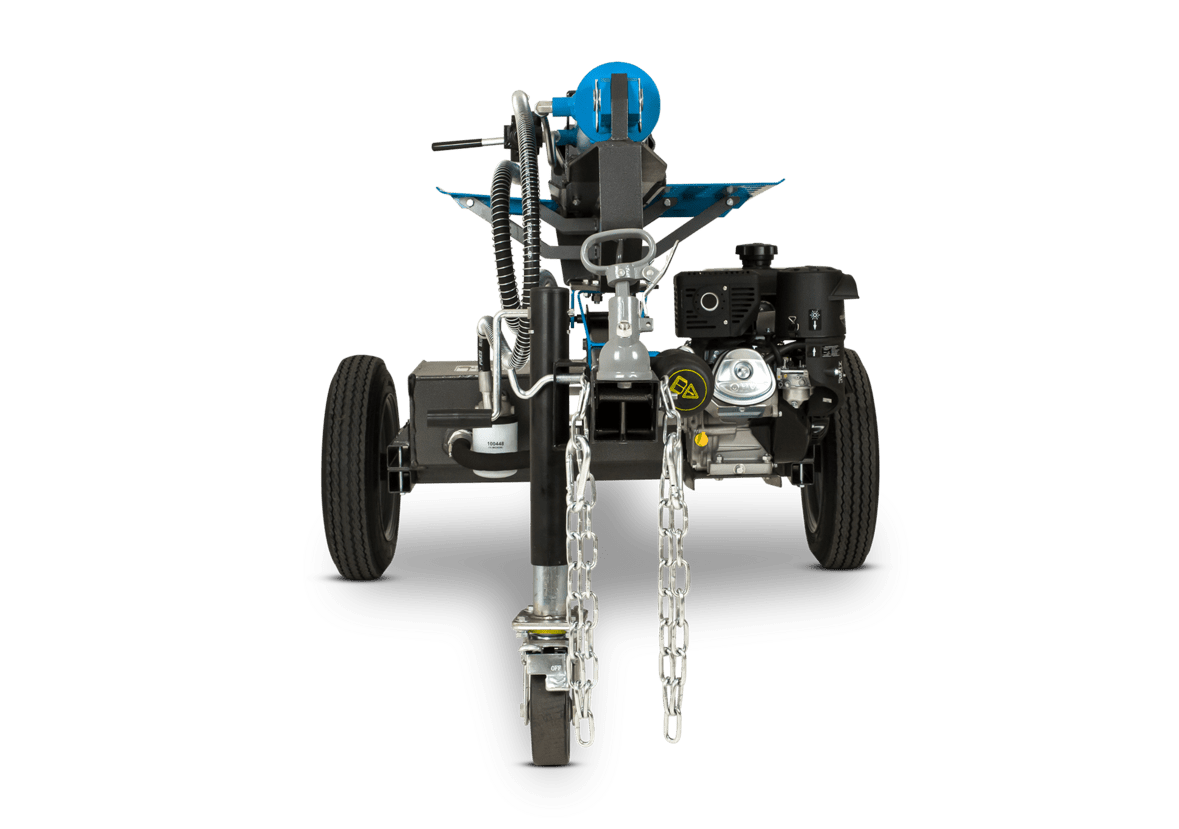

Bushranger LS302 30 Ton Log Splitter with Kohler SCH395 Engine

Bushranger LS302 30 Ton Log Splitter with Kohler SCH395 Engine

$3,299.00
$3,599.00 $3,299.00
Sale Sold out

Stack up firewood for the cooler months or clean up around the property, the LS302 is a tough unit that will get the job done.

The Bushranger 30-Ton log splitter provides quality and power at an affordable price. Fitted with a KOHLER Command PRO CH395 engine, a manually activated auto return valve with an 12.9 second cycle time and quality features throughout this log splitter will provide many years of reliable service.

Features:
✔ KOHLER Command PRO CH395 single cylinder OHV (9.5 hp / 6.8 kW / 277 cc) engine.

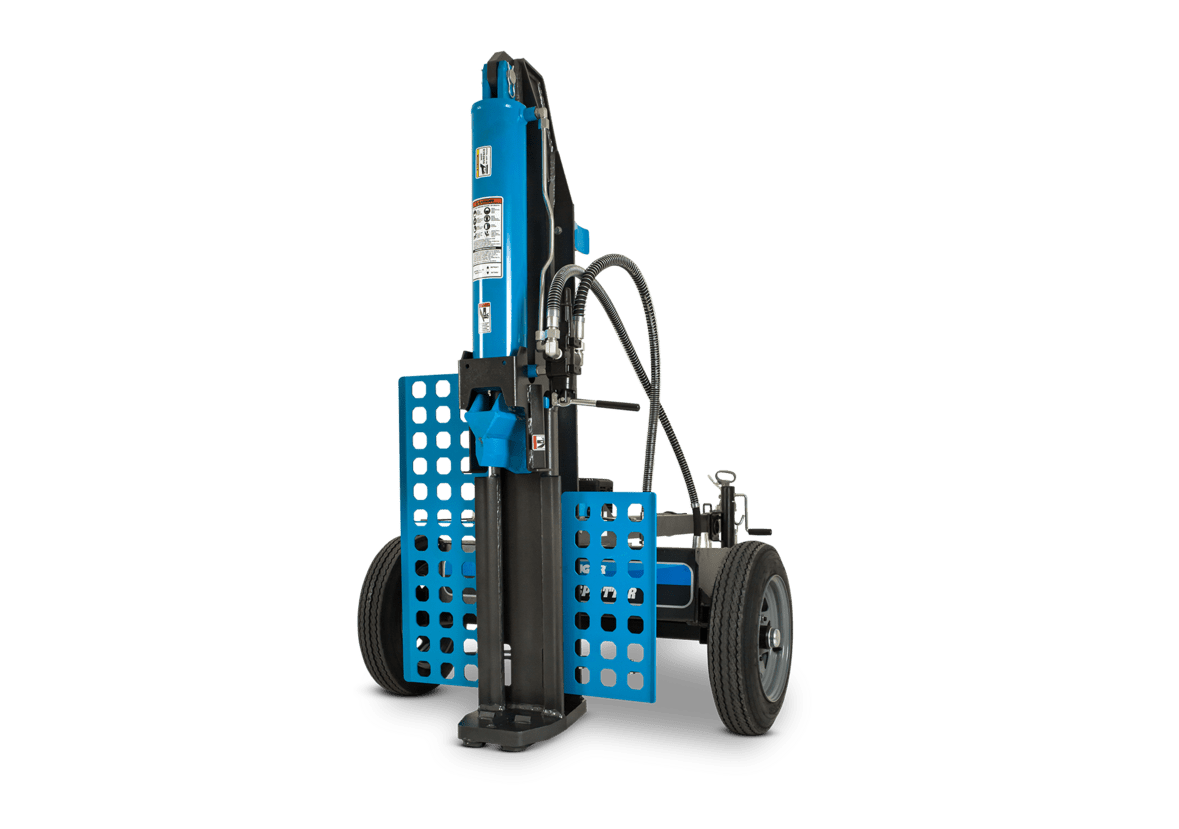

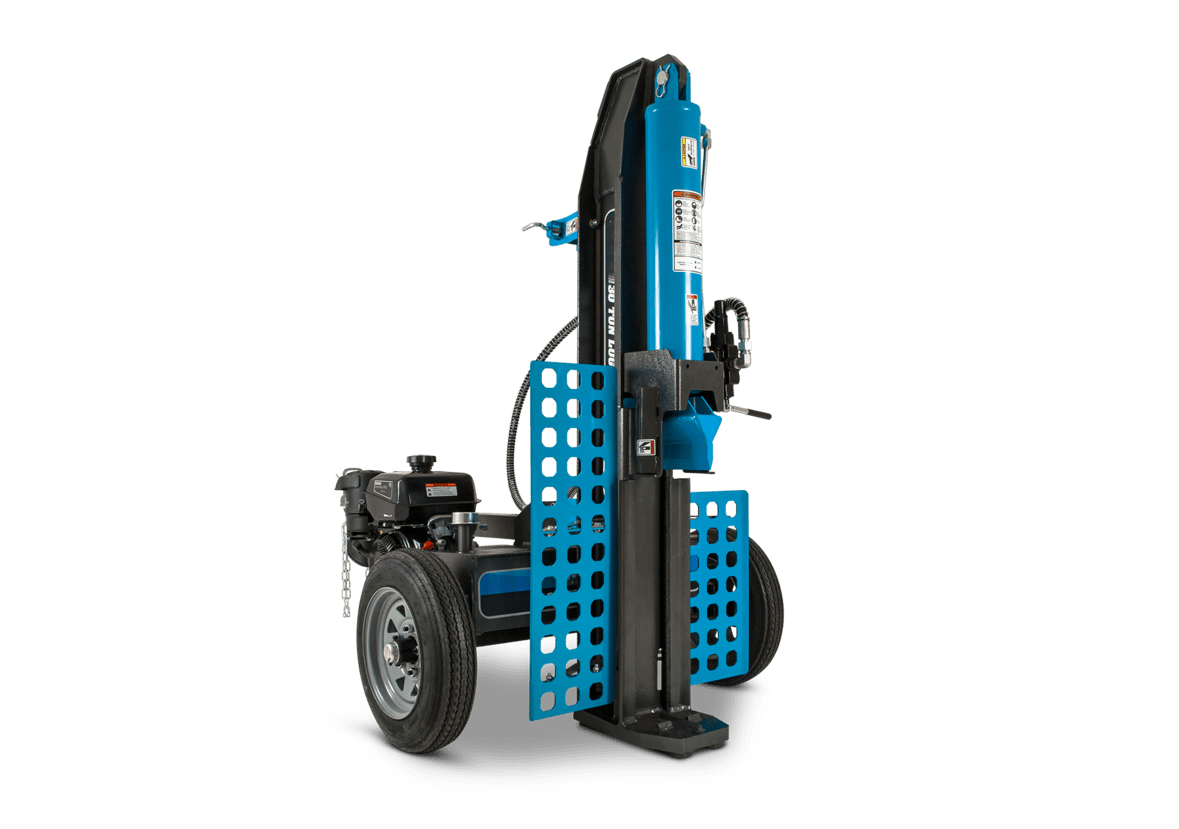

✔ Horizontal or vertical operation.
✔ 30 Tons of splitting force.
✔ Manually activated auto return valve with adjustable detent.
✔ Cycle time, down and back 12.9 seconds.
✔ Two stage pump 15 GPM (56.78 litres per minute).
✔ Valve - Ergonomically positioned for operator comfort.
✔ Wedge: 9" (228.6 mm) High angled heat treated steel.
✔ Wheels / Tyres*: 4.80" x 12" D.O.T certified.
✔ Beam: 9" (228.6 mm) Foot plate.

Warranty Information

Domestic Warranty
3 Year Domestic (Limited) Warranty
Commercial Warranty
3 Month Commercial Warranty
Hire/Rental Warranty
3 Month Hire/Rental Warranty

Miscellaneous

Wedge: (mm)
228.6 mm High angled heat treated steel
Valve
Manually activated auto return valve with adjustable detent
Wheels / Tyres
*D.O.T approved 12" x 4.80" multi lug trailer wheel

Dimension Specs

Shipping Weight: (kg)
249.47 kgs (with fluids)

Engine and Fuel Specs

Engine
KOHLER Command PRO CH395 (9.5 hp / 6.8 kw / 277 cc) horizontal shaft engine
Engine (cc)
277 cc
Horsepower
9.5 hp

Log Splitter Specs

Hydraulic Ram Cylinder: (mm)
Outside: 139.7 mm x 609.6 mm stroke / Inside: 127mm x 622.3 mm stroke
Hydraulic Tank Capacity: (L)
50 litres [Hydraulic system including hydraulic tank]
Maximum Log Length: (mm)
635 mm
Pump: (L)
Two stage pump 56.78 litres per minute
Tow Hitch: (mm)
50 mm ball hitch with safety chains - Aust style trailer bail hitch
Operating Position
Horizontal or vertical operation
Cycle Time
12.9 seconds (down and back)
Beam (mm)
9" Foot plate
Ram Size
2" (50.8 mm) Dia
