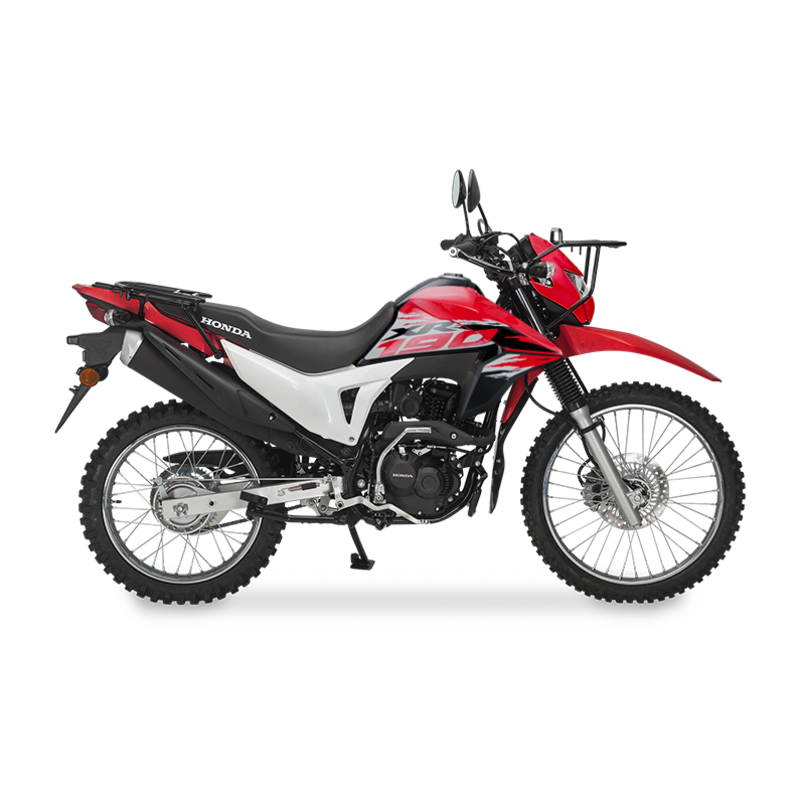

The XR190CT is Honda’s unbreakable two-wheeled farm machine, the ultimately practical and durable choice to get the job done. It has a super reliable 184cc fuel injected engine that provides the smooth strong power needed on the farm. Electric start is standard for comfort and convenience as well as a back-up kick start for peace of mind in emergency situations. Add in the generous carry rack capacity, dual side stands, lever guards and extra mud protection and this workhorse is ready to go.
✔ Comfortable low seat
✔ Sturdy front and rear carry racks
✔ Lever guards
✔ Clutch lock
✔ Electric and kick start
✔ Reliable - High performance 184cc 4-stroke, single-cylinder, air-cooled PGM-FI
✔ Farmer approved - Tough 5-speed manual gearbox with Clutch lock
✔ Ready to work - Electric with kick starter back up
✔ Utility and versatility - Front and rear heavy duty carry racks

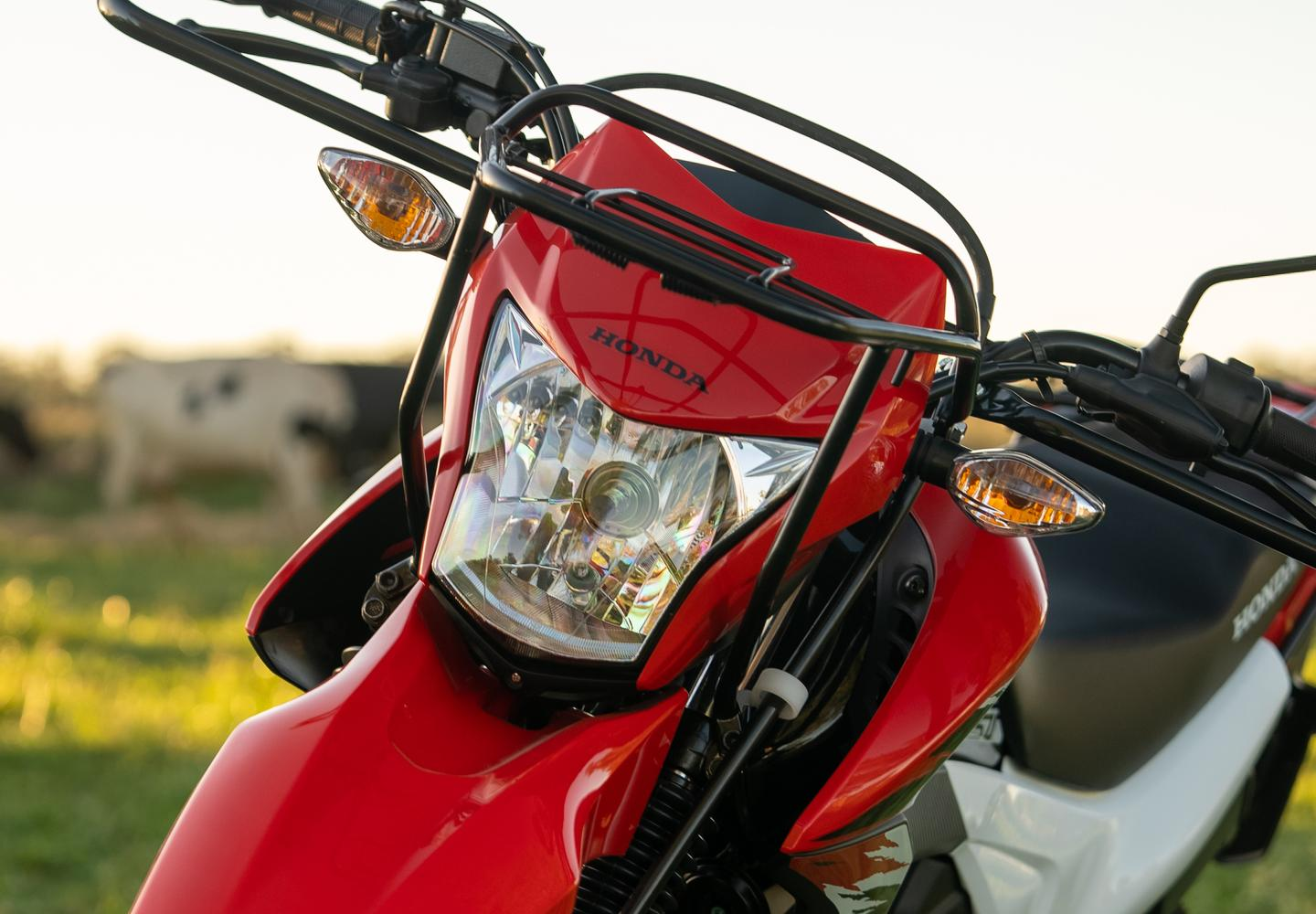

High & low beam headlight:
The Halogen headlight, with high and low beam settings ensures you get safe riding at night or during low visibility days.

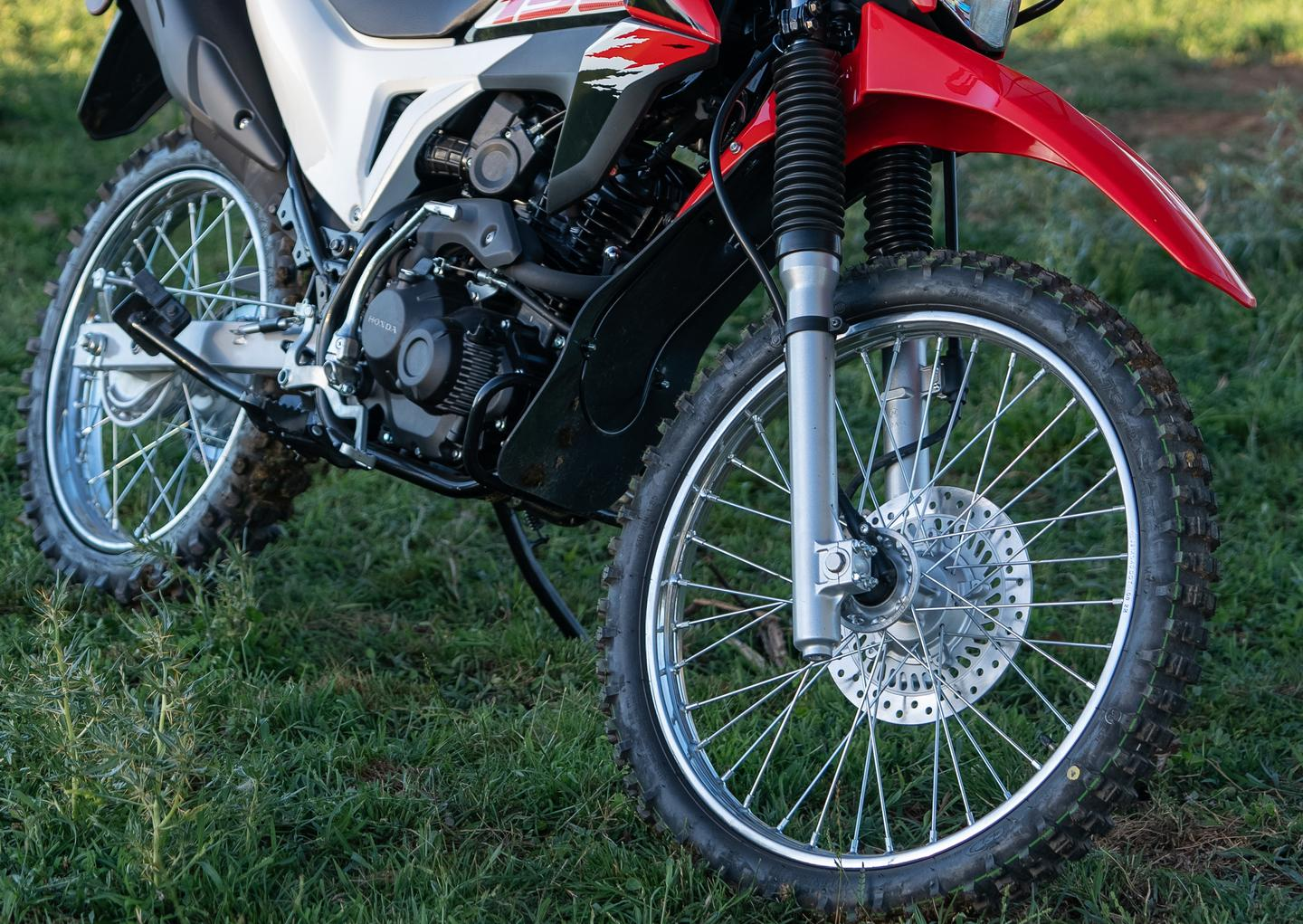

Off-road tyres & large front mud guard:
The 21” front & 18” rear Off-road tyres deliver plenty of grip when riding on the farm. A large front mud guard with additional mud flap for extra protection helps prevent mud from accumulating on the engine.
Wide comfortable seat:
The AG-XR has a wide comfortable seat for long working hours and the low seat height (823mm) reduces stress on the body when continuously getting on and off the motorcycle.

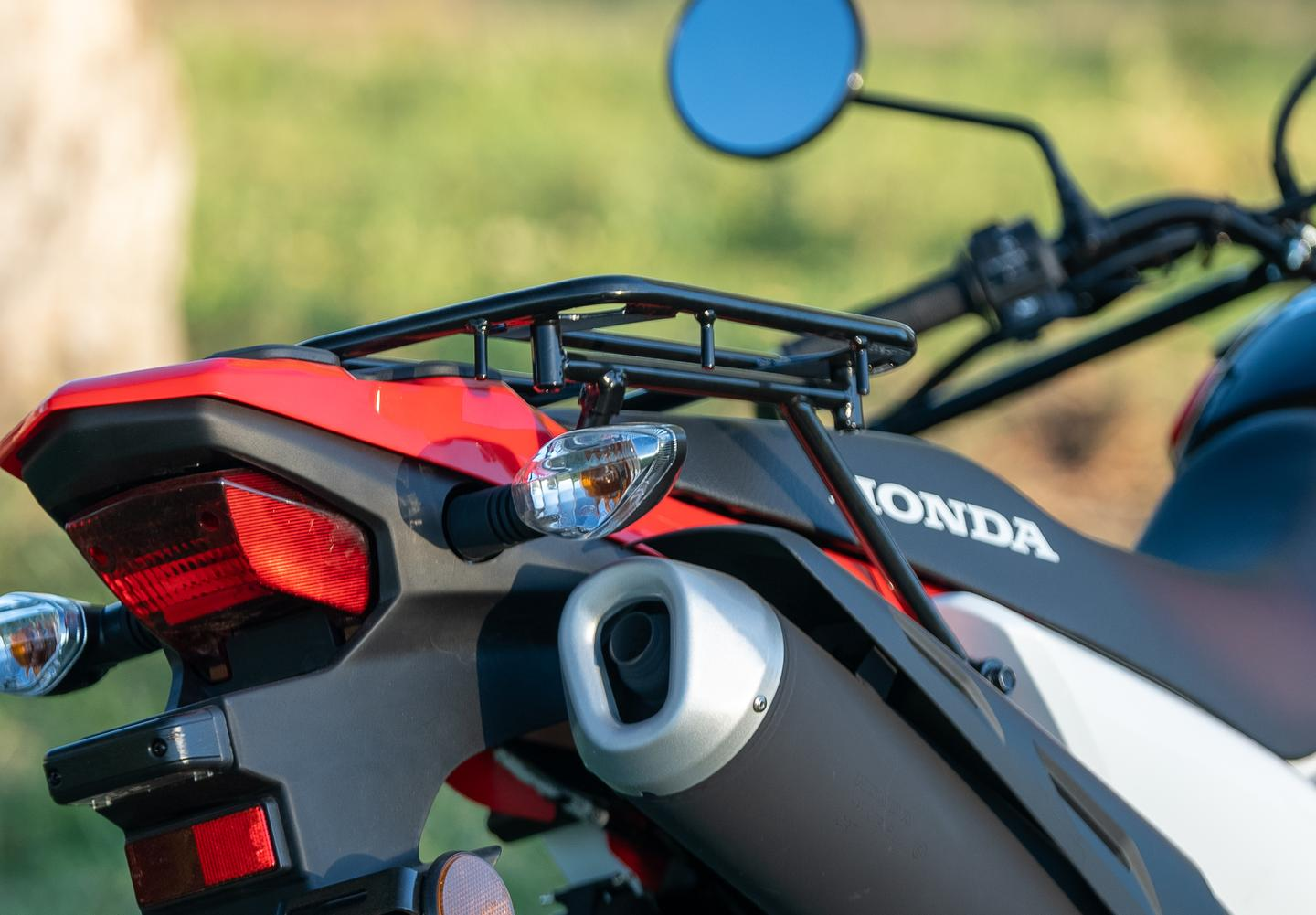

Heavy duty rear rack:
A true work horse with a heavy-duty rear rack for carrying essential equipment (max 20kg) and a spring-loaded clamp on the front rack for smaller items (max. 3kg).
Big foot side stand:
The “Big foot” side stands on both sides of the motorcycle prevent the AG-XR from sinking into soft ground and allow for greater flexibility if you need to stop and park on sloping ground.

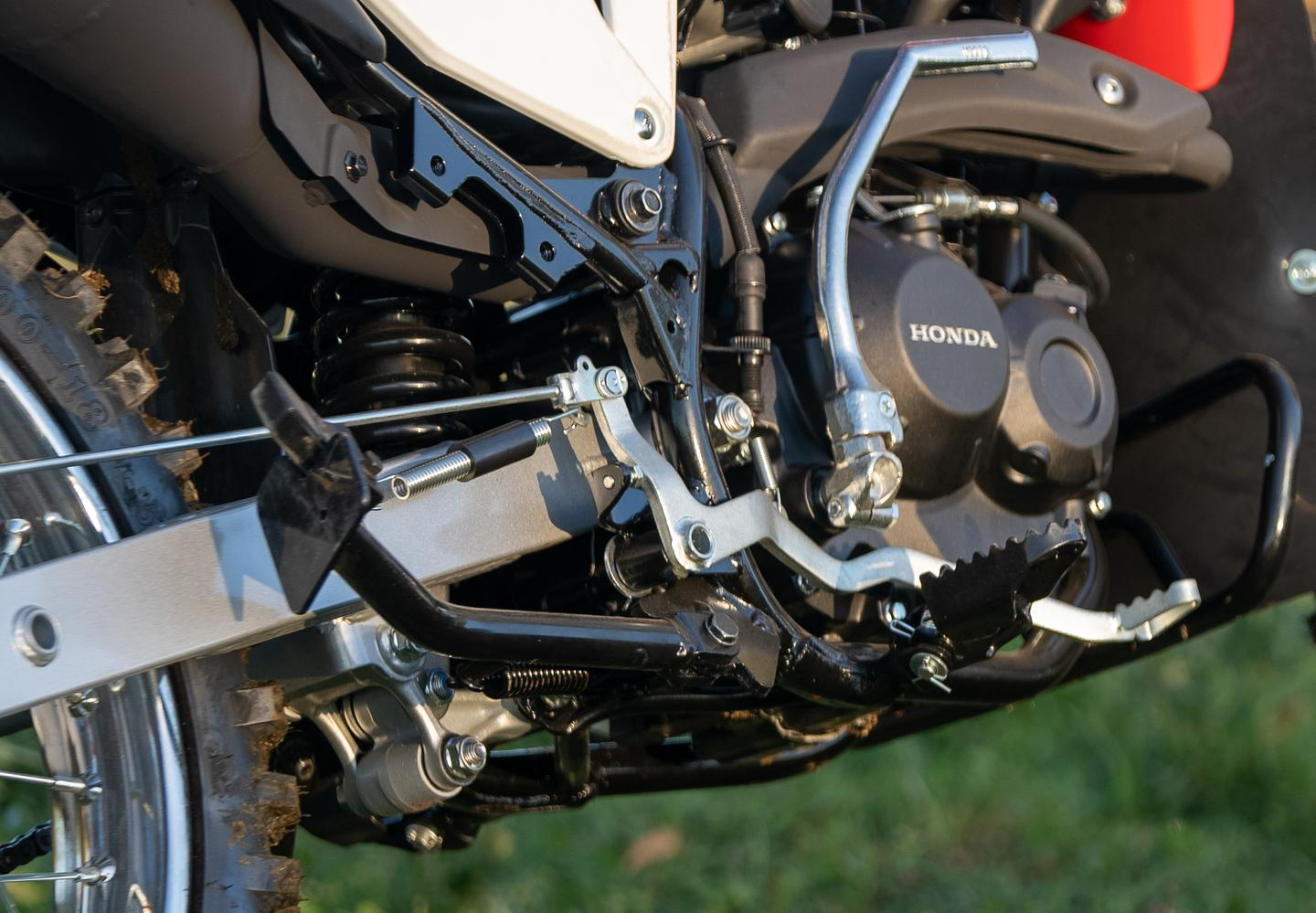

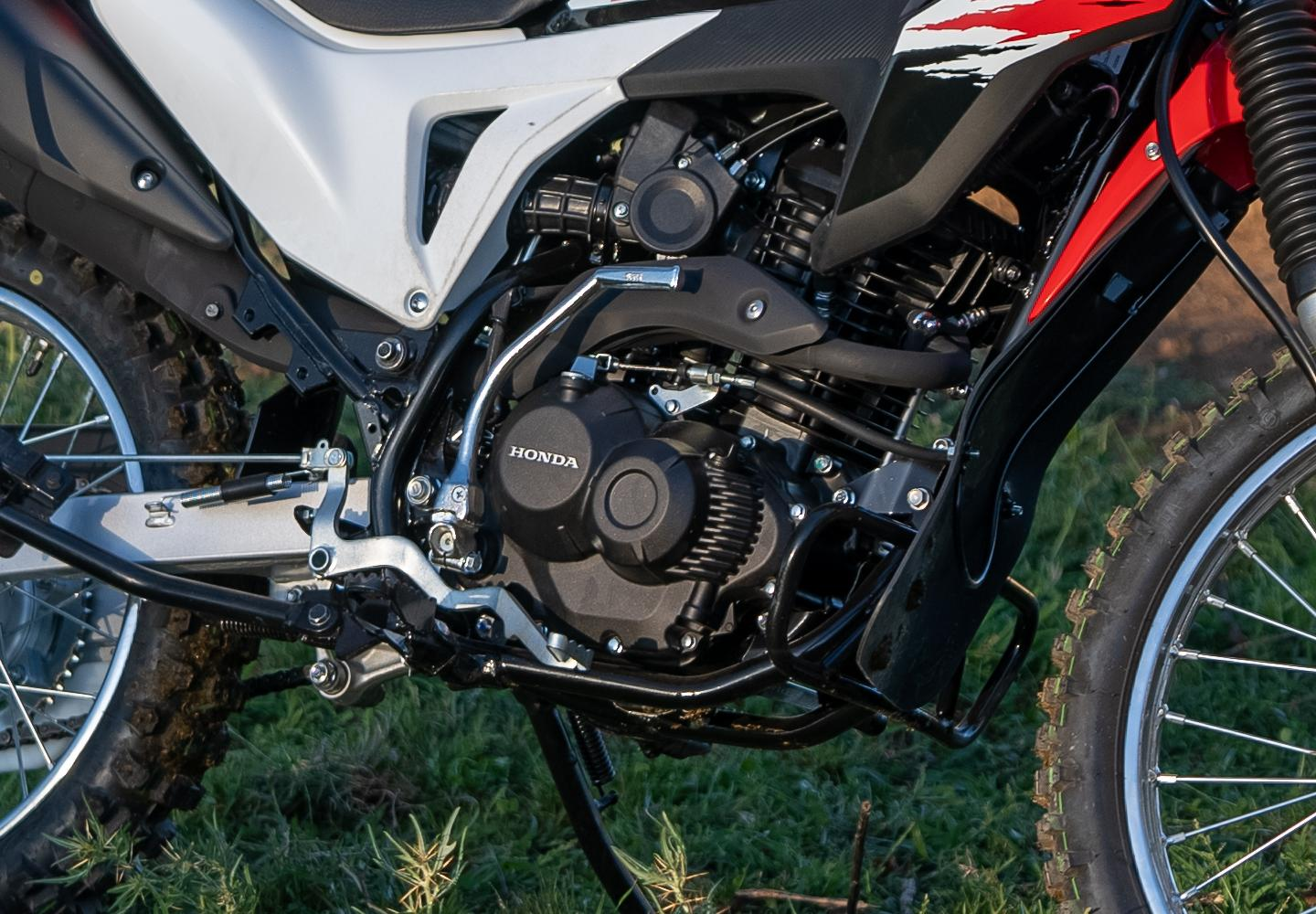

Engine & lever guards:
An engine guard protects the engine from wear and tear in rough terrain or scrub and also rider’s feet from rocks and other hazards that pop up out in the paddock. Lever guards also add some extra durability by protecting brake and clutch levers. They also protect rider’s hands from being injured by branches when riding.
Chassis | |
Brakes | |
Brakes (F) | 1x disc |
Brakes (R) | Drum |
Suspension | |
Front Adjustability | - |
Front Suspension Type | Telescopic fork |
Front Wheel Travel (mm) | 160 |
Rear Adjustability | - |
Rear Suspension Type | Single Shock |
Rear Wheel Travel (mm) | 151 |
Dimensions, Weights And Capacities | |
Capacities | |
Fuel Capacity (L) | 12 |
Dimensions | |
Wheelbase (mm) | 1,369 |
Ground Clearance (mm) | 237 |
Overall Height (mm) | 1,127 |
Overall Length (mm) | 2,103 |
Overall Width (mm) | 842 |
Seat Height (mm) | 827 |
Weights | |
Kerb Weight (kg) | 137 |
Powertrain | |
Engine | |
Bore & Stroke (mm) | 61 x 63.1 |
Compression Ratio | 9.5:1 |
Cylinders | 1 |
Displacement (cc) | 184 |
Engine Type | Air-cooled 4-stroke |
Fuel System | Fuel injection |
Starter | Electric and kick |
Valves | 2 |
Transmission | |
Transmission | 5-speed |
Drive | Chain |
Tyres And Wheels | |
Tyres | |
Tyres (F) | 2.75-21 |
Tyres (R) | 110/90-18 |
Disclaimers | Overseas model shown. |
