Kawasaki

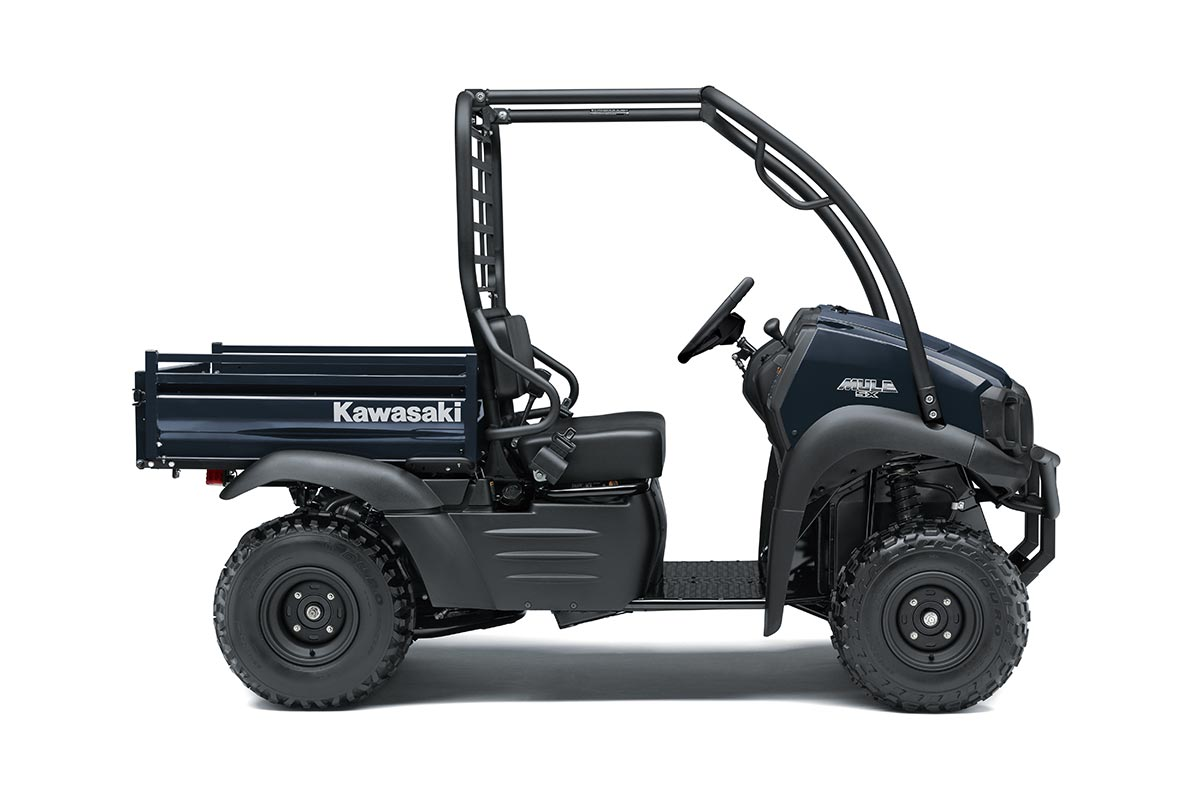

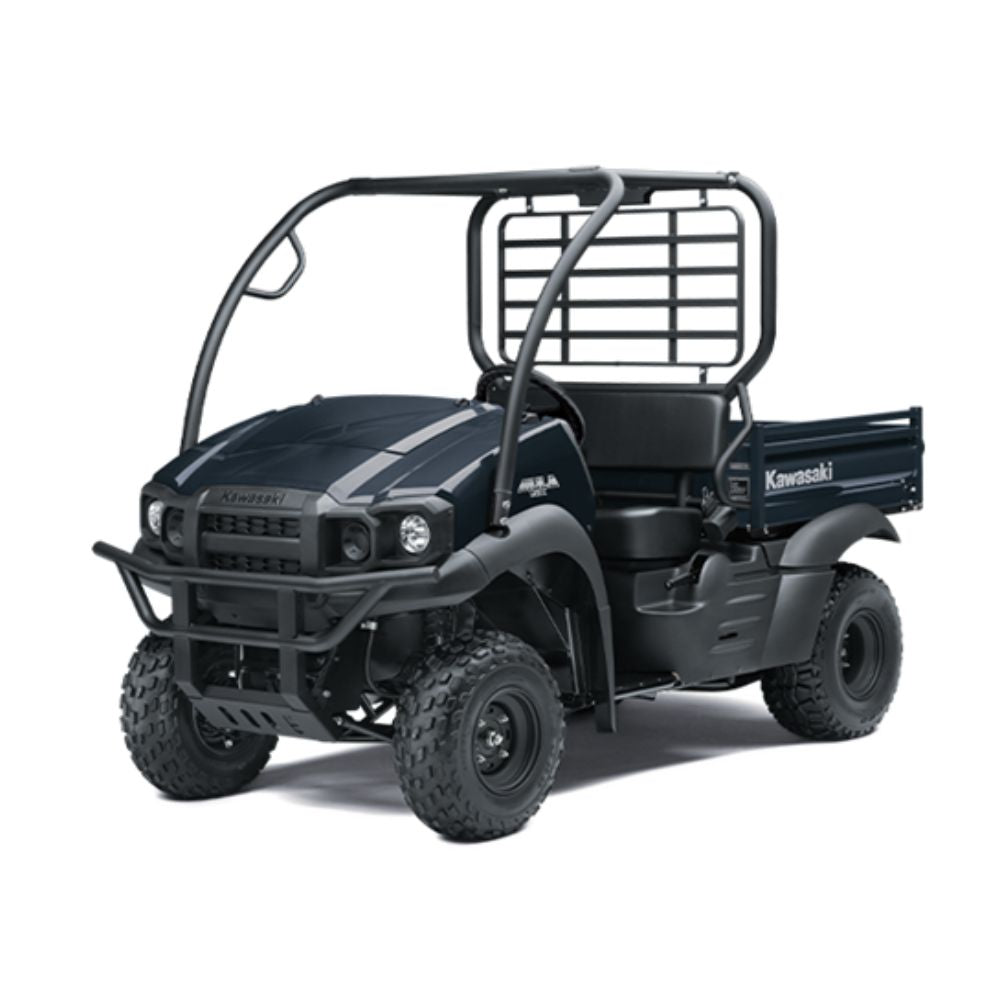

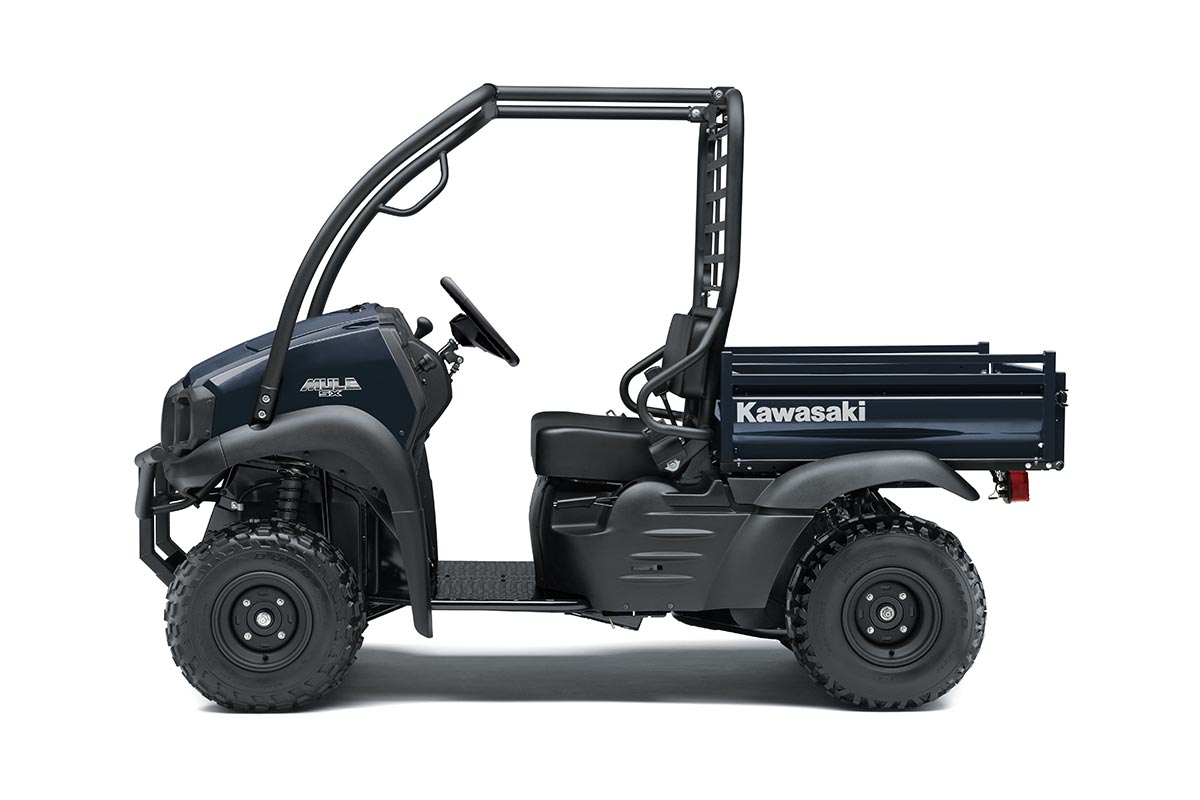

Kawasaki MULE SX 2025

Kawasaki MULE SX 2025

Regular price $14,267.00
Regular price Sale price $14,267.00
Sale Sold out

Styled in the image of its full-size MULE PRO siblings, the MULE SX side x side packs plenty of stout muscle into a compact and agile two-passenger vehicle. Handle a wide variety of tasks with the ability to tread lightly and manoeuvre in tight areas, or take a new path with the MULE SX 4x4 XC—a willing companion on the jobsite and on the weekends.

Compact size and tight turning radius
401 cc 4-stroke single
500 kg towing capacity
✔ Steel cargo bed with textured surface
✔ 2WD, dual-mode rear differential with diff. lock
Continuously Variable Transmission (CVT)
✔ 22” Duro tyres
✔ Halogen headlights

ENGINE - Reliable Power

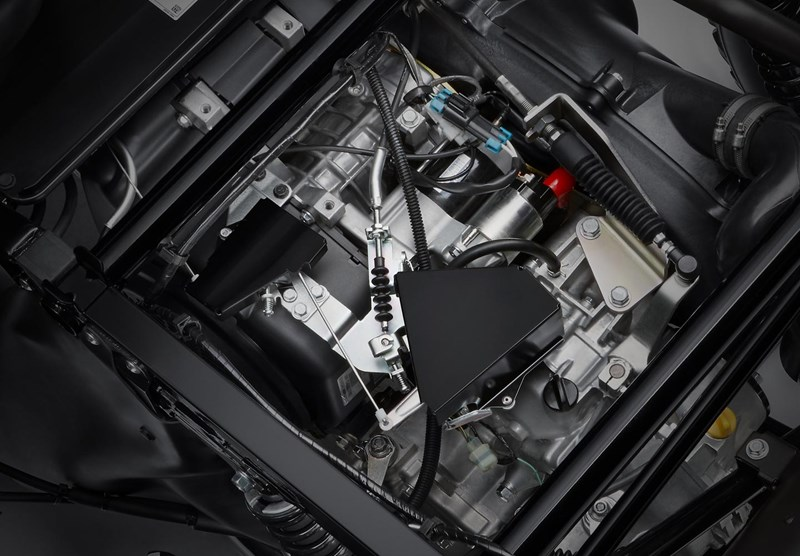

401 cc air-cooled, four-stroke single packs plenty of power while the Continuously Variable Transmission (CVT) contributes to smooth power delivery.

CAPABILITY - Get More Done

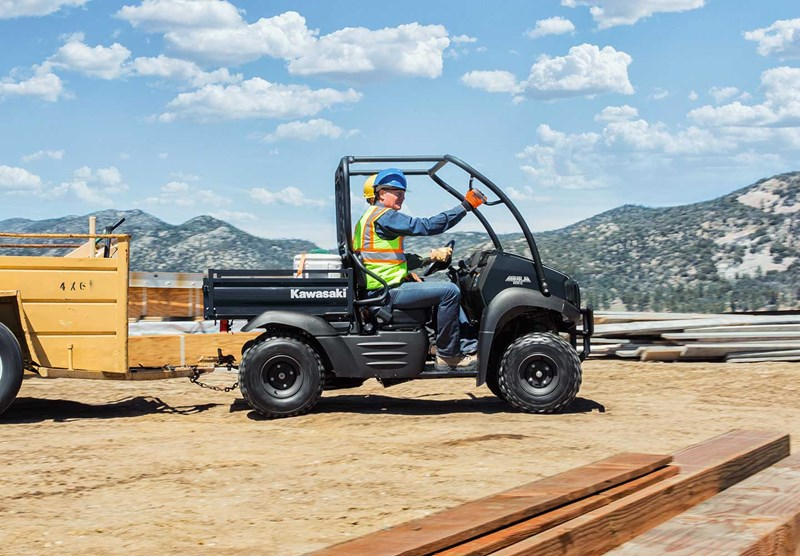

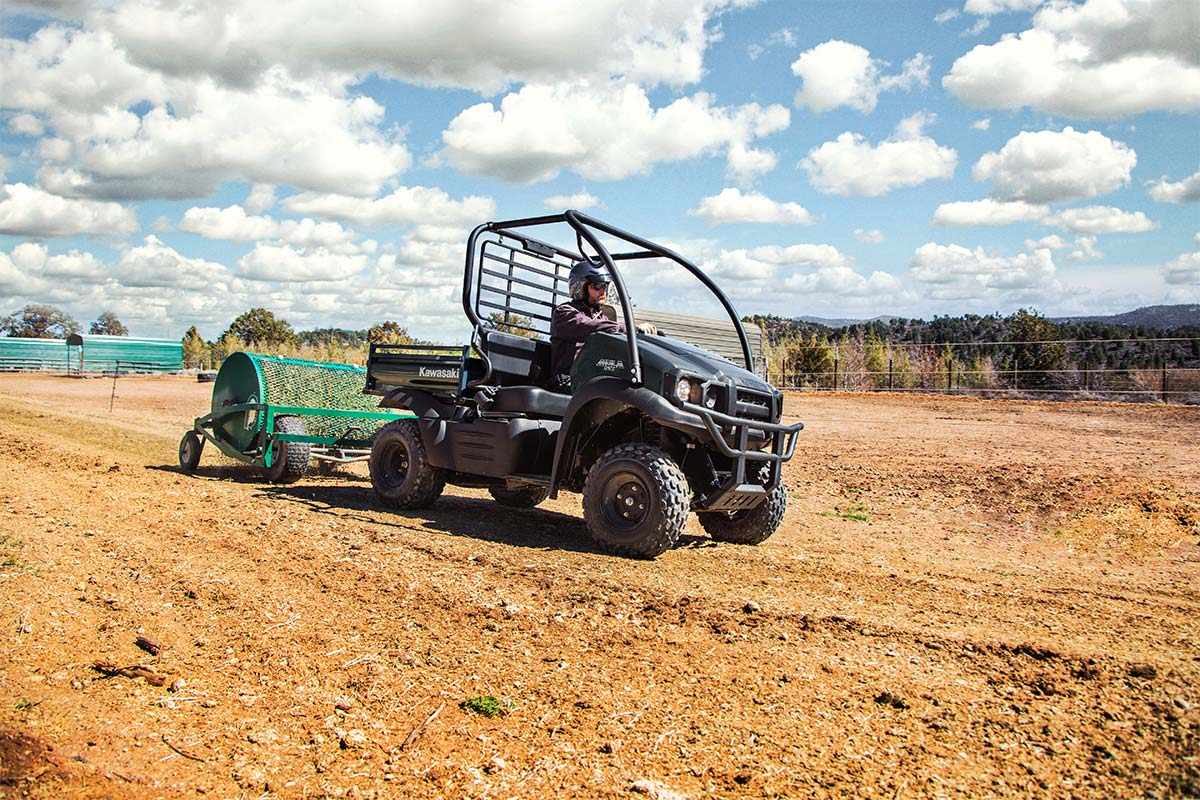

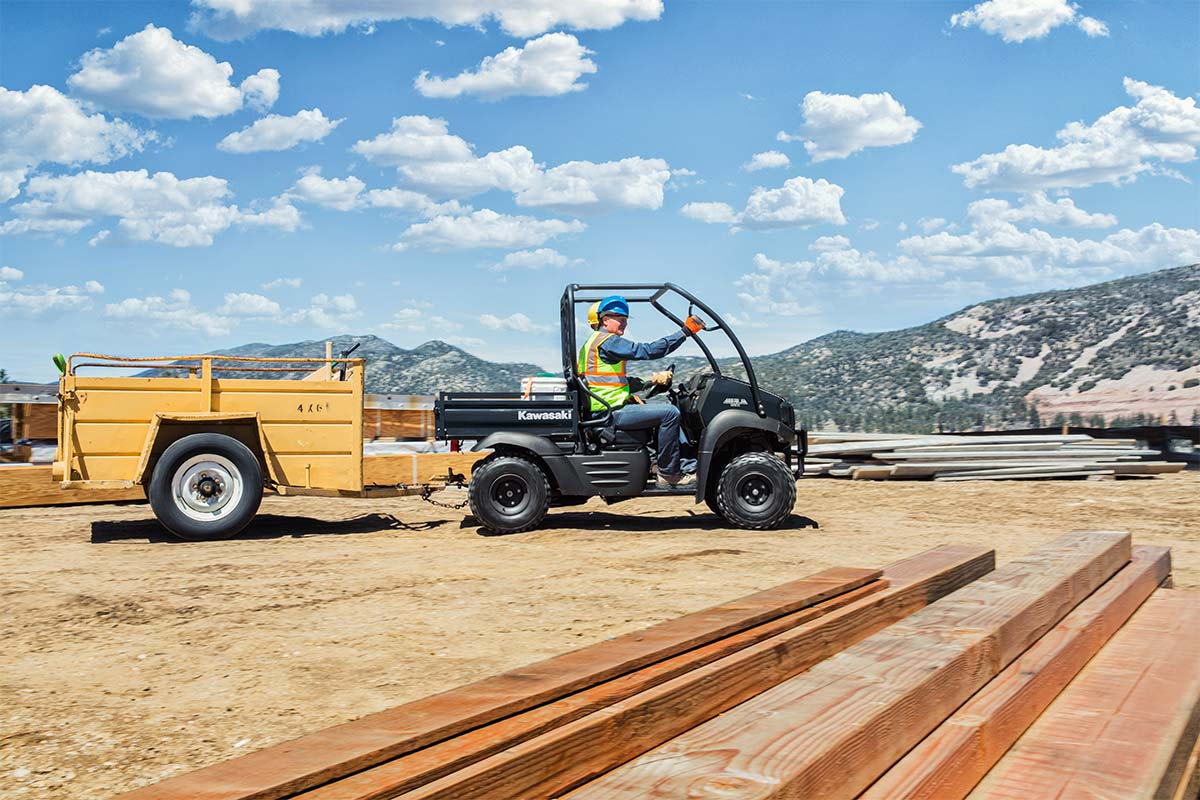

Handle almost any task with the MULE SX side by side’s generous 500 kg towing capacity* and 181 kg cargo bed capacity. *Requires optional hitch

DURABILITY - STRONG & Dependable

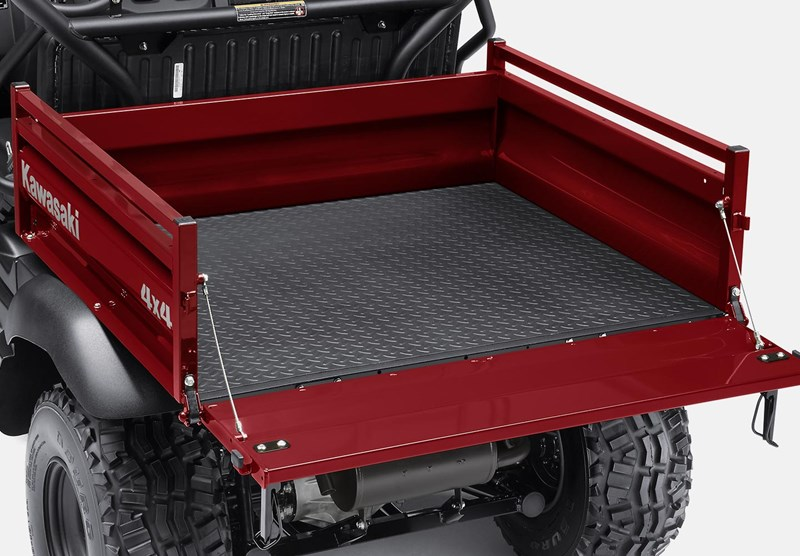

Steel cargo bed with textured floor is durable and scratch resistant. Built to last, all MULE SX side x side vehicles are backed by the industry-leading Kawasaki STRONG 3-Year Limited Warranty. Colour shown not available in Australia

POWER
Maximum Power 9.2 kW {12.5 PS} / 3,800 rpm
Maximum Torque 27.9 Nm {2.8 kgfm} / 2,200 rpm
Engine 4-stroke Single
Displacement 401 cc
Bore x Stroke 82.0 x 76.0 mm
Compression Ratio 8.3:1
Valve System OVH
Fuel System Carburettor
Ignition Magneto & transistor
Starting Electric
Cooling Air-cooled
Lubrication Forced lubrication, wet sump
Transmission Automatic, forward/reverse
Primary Reduction Ratio 3.653 ~ 0.794 (belt converter)
Gear Ratio: Forward (High) 2.916 (35/24 x 36/18)
Gear Ratio: Reverse 3.750 (30/16 x 36/18)
Final Reduction Ratio: Front -
Final Reduction Ratio: Rear 4.000 (64/16)
Final Drive Gear, dual-mode differential

CAPABILITY
Frame Ladder type, tubular steel
Front Suspension Independent, MacPherson strut
Rear Suspension Unit swing axle
Front Wheel Travel 78 mm
Rear Wheel Travel 79 mm
Steering Rack and pinion
Rake
Trail 40 mm
Steering Angle (L/R) 43° (IN) / 38° (OUT), 43° (IN) / 38° (OUT)
Front Tyres 22 x 9.00-10
Rear Tyres 22 x 11.00-10
Front Brakes Dual hydraulic drums
Rear Brake/s Dual hydraulic drums
Parking Brake Mechanical, on rear wheels

DETAILS
Dimensions (LxWxH) 2,710 x 1,335 x 1,780 mm
Wheelbase 1,780 mm
Road Clearance 155 mm
Seat Height 765 mm
Curb Weight* 439 kg
Fuel Capacity 16 litres
Tread Front / Rear 1,055 mm / 1,000 mm
Turning Radius 3.3 m
Cargo Bed Dimensions (LxWxH) 905 x 1,040 x 245 mm
Cargo Bed Capacity 181 kg
Seating Capacity 2
Vehicle Load Capacity 415 kg
Towing Capacity 500 kg
Lighting 2x halogen headlights
Model Code KAF400JSFNN



Disclaimers

Images shown for marketing purposes only. Images of accessorised models may differ from actual models sold.

*Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).
**Estimated dry weight does not include all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).

KAWASAKI CARES: Always wear a helmet, eye protection, and proper apparel. Never ride under the influence of drugs or alcohol. Read Owner’s Manual and all on-product warnings. Professional rider shown on a closed course. 2021 Kawasaki Motors Pty Ltd.

Specifications subject to change.
