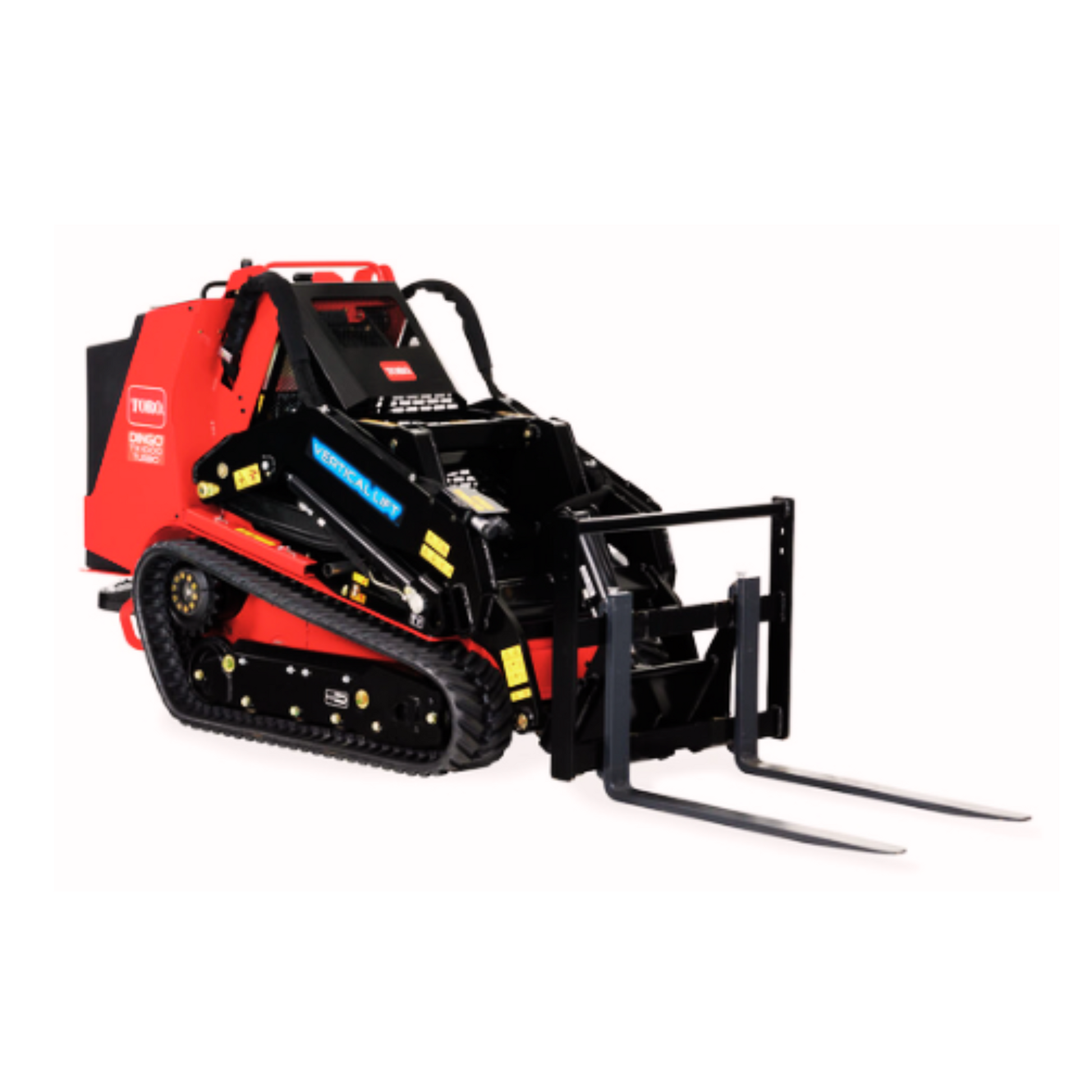

Toro (22587) Dingo® TX 1000 TURBO Track Loader, Narrow

Toro (22587) Dingo® TX 1000 TURBO Track Loader, Narrow

$57,999.00
$63,195.00 $57,999.00
Sale Sold out
  • Smart Power allows the machine to run more efficient by automatically adjusting traction speed to maximize engine, auxiliary, and traction torque.
  • Compact footprint fits through standard 36" gates
  • Maximum height and reach easily clears the side of a 30-yard dumpster
  • Patented traction control
Air Filter Remote: Primary and Safety Elements
Cooling System Combo Crossflow Radiator and Oil Cooler
Dump Angle 40 deg
Dump Height 60.3 in. / 153.2 cm
Engine Horsepower 24.7 hp (18.4 kW)
Engine Make Yanmar
Engine Model 3TNV80FT Turbo Diesel Tier 4 & EU Stage 5 compliant
Fuel Tank 10.25 gal. / 38.8 L
Fuel Type Diesel
Ground Clearance 5.9 in. / 14.9 cm
Ground Pressure 6.1 psi
Ground Speed - Forward Up to 4.1 mph / 6.6 km/h
Ground Speed - Reverse Up to 4.1 mph / 6.6 km/h
Height 54.6 in. / 138.7 cm
Height - With Bucket 54.6 in. / 138.7 cm
Hinge Pin Height 81 in. / 205.7 cm
Hydraulic Flow - Traction 12.3 GPM
Hydraulic High Flow 13.2 GPM
Hydraulic Low Flow 4.9 GPM
Hydraulic Pressure 3,000 psi
Length 83 in. / 210.8 cm
Length - With Bucket 104 in. / 264.2 cm
Loader Arms Vertical Lift
Max Operating Height 106.2 in. / 269.7 cm
Oil Capacity 3.8 qt / 3.6 L
Rated Operating Capacity* 1,000 lbs / 454 kg
Reach - Fully Raised 23.3 in. / 59.2 cm
Reservoir Capacity 8.6 gal. / 32.5 L
System Capacity 11.5 gal. / 43.5 L
Track Length 126.6 in. / 321.5 cm
Track Width 5.9 in. / 14.9 cm
Tracks MERT track with “B” style tread
Traction Dual Hydrostatic Pump
Weight 2,826 lbs / 1,282 kg
Wheelbase 39 in. / 99.0 cm
Width 34.6 in. / 87.8 cm
Width - With Bucket 42.2 in. / 107.2 cm
