Toro

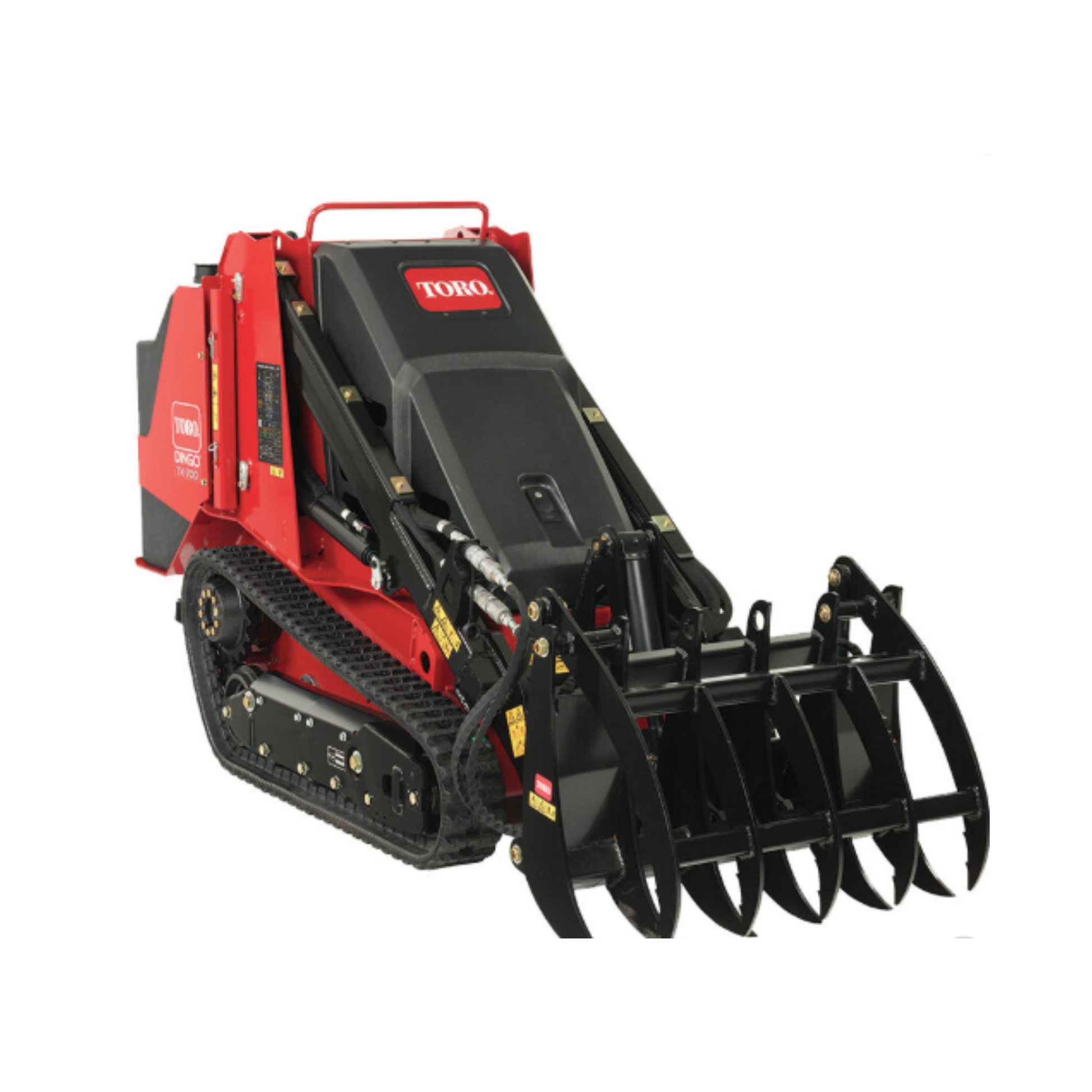

Toro Dingo® (22351) TX 700 Track Loader, Narrow

Toro Dingo® (22351) TX 700 Track Loader, Narrow

$42,999.00
$50,997.00 $42,999.00
Sale Sold out
  • Compact footprint
  • Patented traction control
  • Camso track system with less aggressive tread pattern that minimizes turf damage
Engine        4.5 HP* (18 kW*) Yanmar 3TNV80F
Air Filter  Remote single element
Cooling System  Combo downflow radiator and oil cooler
Fuel Tank 5.5 gallons (20.8 liters)
Oil Capacity 3.6 quarts (3.4 liters)
Hydraulic Pressure  3,000 PSI
Hydraulic Flow  Traction: 14.5 gpm (each pump)
Auxiliary: 13.7 gpm
Reservior Capacity 10 gallons (37.9 liters)
Tracks Camso Turf Friendly
Traction Dual hydrostatic pump
Dimensions - Track 9.1" x 126.6" (23.1 cm x 321.5 cm)
Wheelbase 39" (99.0 cm)
Ground Clearance 5.25" (13.3 cm)
Overall Dimensions (WxLxH) With Bucket  41.4" x 102.8" x 55.3"
(105.2 x 261.1 x 140.5 cm)
Overall Dimensions 40.2" x 82" x 55.3"
(102.1 x 208.3 x 140.5 cm)
Maximum Operating Height 97" (246.4 cm)
Hinge Pin Height  73.5" (186.7 cm)
Dump Height 52.9" (134.4 cm)
Dump Angle  42-degrees
Reach Fully Raised 31" (78.7 cm)
Ground Speed 4.5 mph (7.2 km/h)
Weight 2,602 lbs (1,180.2 kg)
Tip Capacity 2,182 lbs (989.7 kg)
Rated Operating Capacity 764 lbs (3446.5 kg)
Ground Pressure 4.8 PSI
